When should replace Oil Separator? When the oil consumption of the air compressor is greatly increased, check whether the oil filters and pipelines, oil return pipes, etc. are blocked and cleaned. When the oil consumption is still large, the general oil separator has deteriorated and needs to be...
When should replace Oil Separator?
When the oil consumption of the air compressor is greatly increased, check whether the oil filters and pipelines, oil return pipes, etc. are blocked and cleaned. When the oil consumption is still large, the general oil separator has deteriorated and needs to be replaced in time; The pressure difference between the two ends of the oil and air separation filter element should be replaced when the pressure difference reaches 0.15MPA; when the pressure difference is 0, it indicates that the filter element is faulty or the air flow has been shorted, and the filter element is also replaced at this time. The general replacement time is 3000 ~ 4000 hours. If the environment is poor, its use time will be shortened.

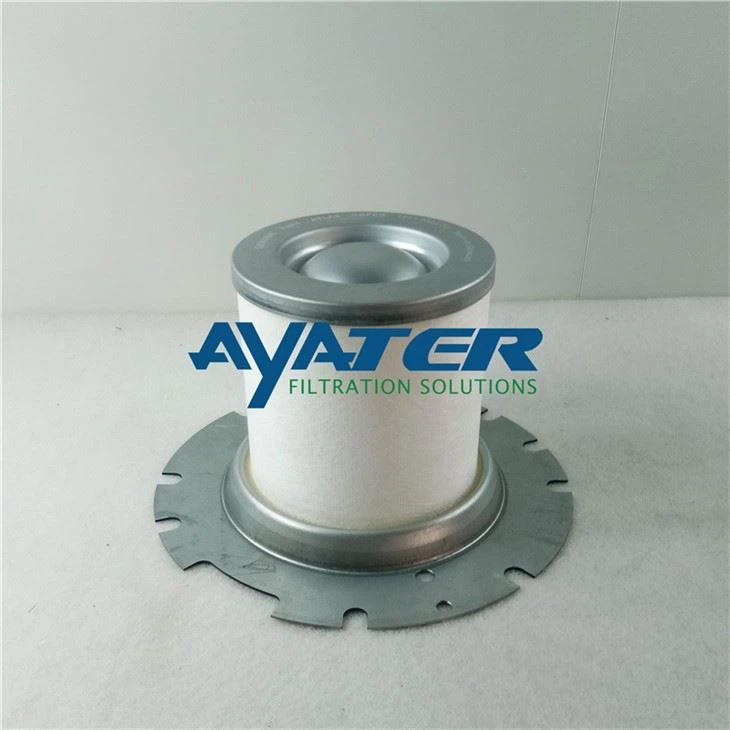

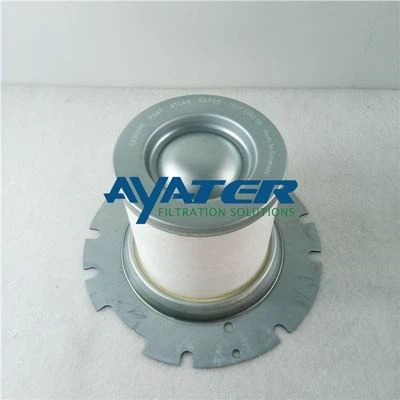

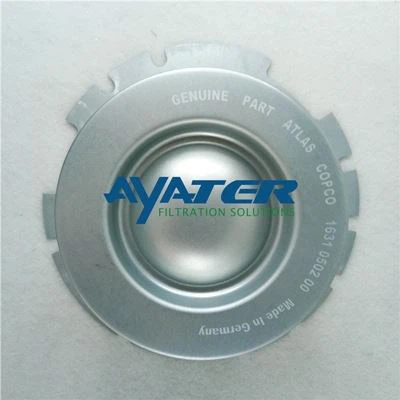

Atlas Copco Oil Separator 1631050200
 |  |
Atlas Copco 1631050200 Dimensions
Outer Diameter | 167 mm |
Largest Inner Ø | 104 mm |
Largest Diameter | 300 mm |
Total Height | 182 mm |
Product Net Weight | 2.37 Kg |
O-ring | 3 |

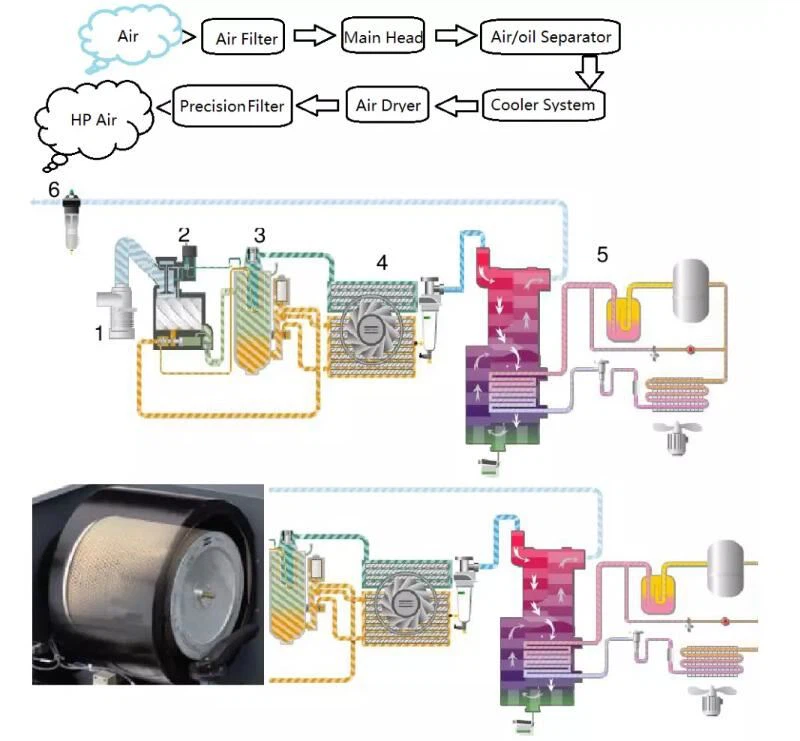

Air compressor working principle

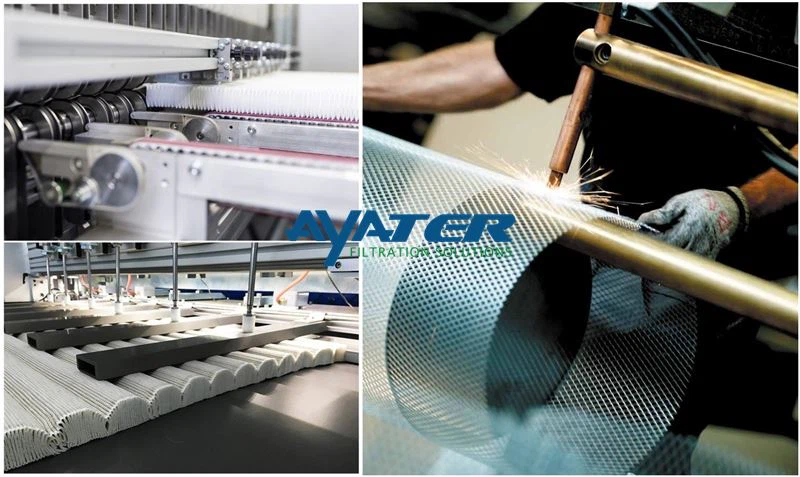

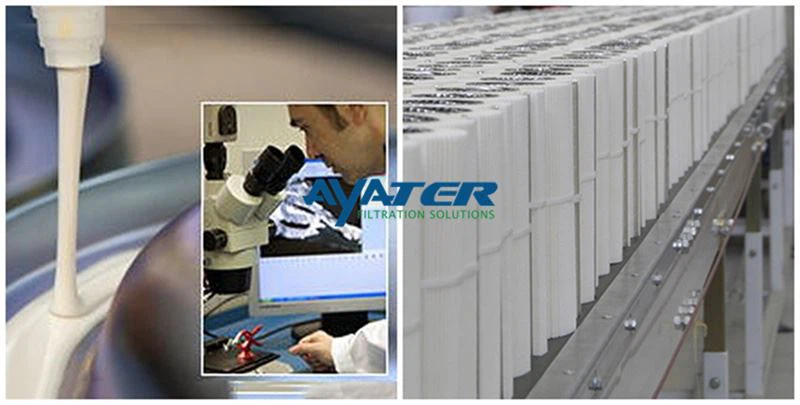

Our Workshop
