Oil separator Working principle Air/oil separators and spin-on separators function according to the coalescence principle. A twin screw arrangement compresses the gas and it is transferred to a pressure reservoir. Oil is injected to seal the pair of screws and to lead the compressor heat away...
Oil separator Working principle
Air/oil separators and spin-on separators function according to the coalescence principle. A twin screw arrangement compresses the gas and it is transferred to a pressure reservoir. Oil is injected to seal the pair of screws and to lead the compressor heat away and is transferred with the compressed gas to the pressure reservoir. After preseparation oil droplets remain in the compressed gas. Air/oil separators are used to join the droplets into larger droplets which are then collected and returned to the oil circuit. This minimises oil consumption in the compressor and ingress of oil into the compressed air network.
Kaeser oil separators
 |  |

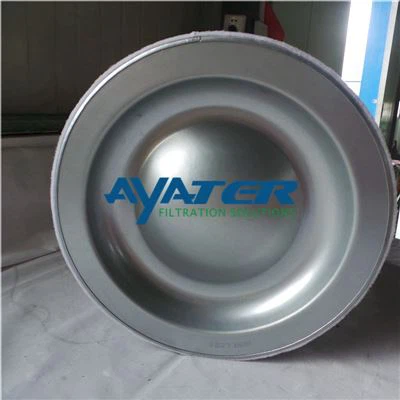

Kaeser oil separator 6.2132.0
 |  |
 |  |
Kaeser oil separator 6.2132.0 Dimensions
Outer Diameter | 398 mm |
Largest Inner Ø | 320 mm |
Largest Diameter | 435 mm |
Total Height | 402 mm |
Product Net Weight | 17.2 Kg |
O-ring | 2 |
Packing Detail
1. Small carton boxes for each separator, then big thick carton boxes for several separators.
2. Neutral packing or as customer require
