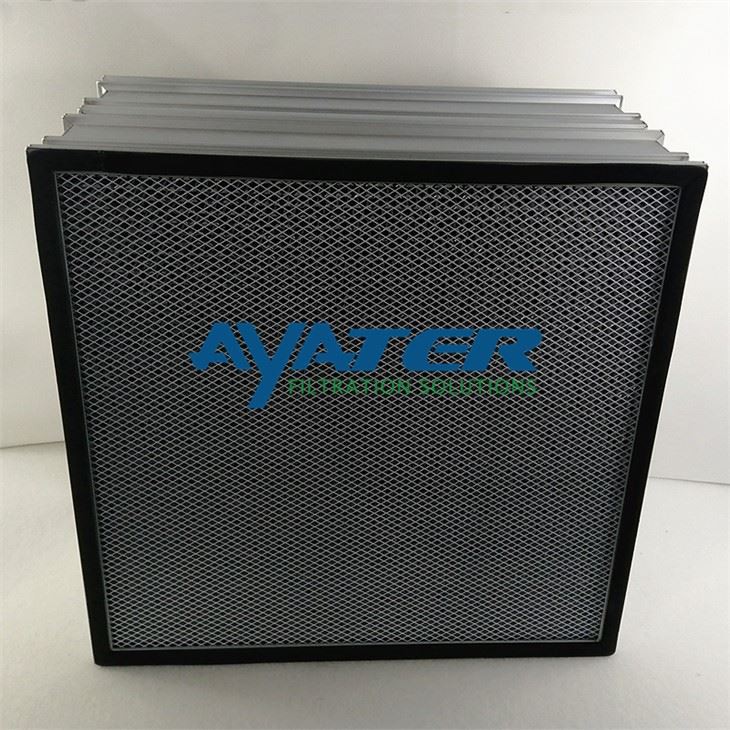

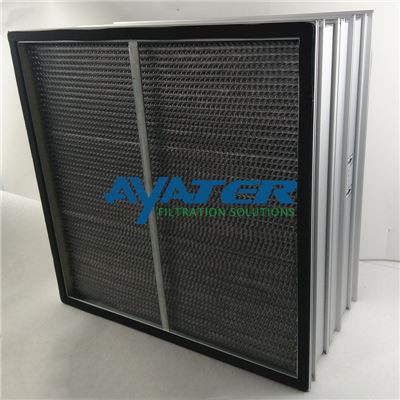

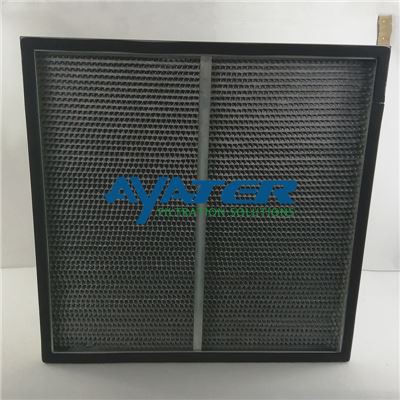

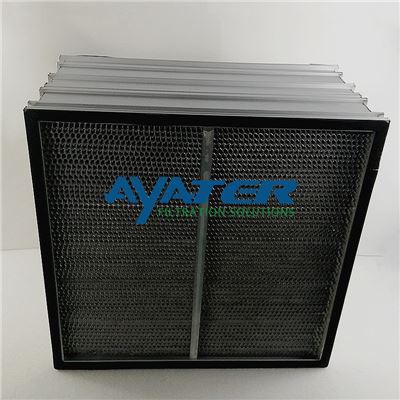

Air Filter 5929-0101-20

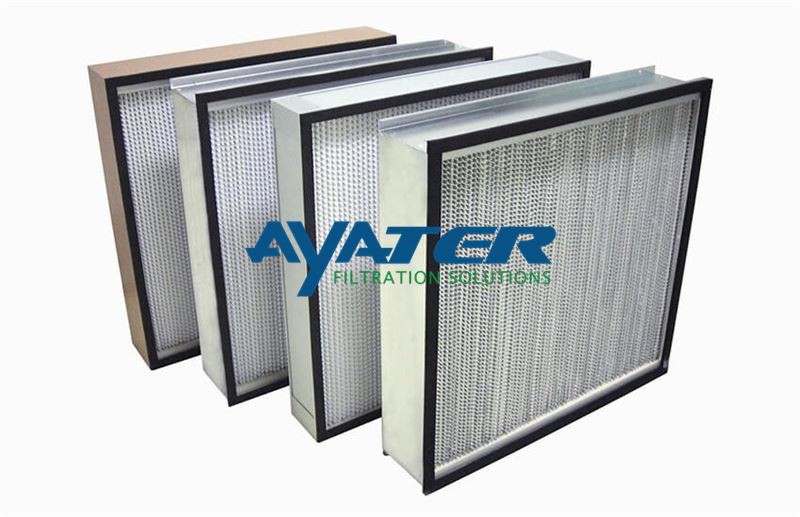

Ayater Pleated Panel Air Filter

Air Filter 5929-0101-20 Technical Data

Specifications: (592 × 592 × 292mm)

No .: 5929-0101-20

Weight: 16.2 kg

Filter area: 13.4 square meters

Media: glass fiber

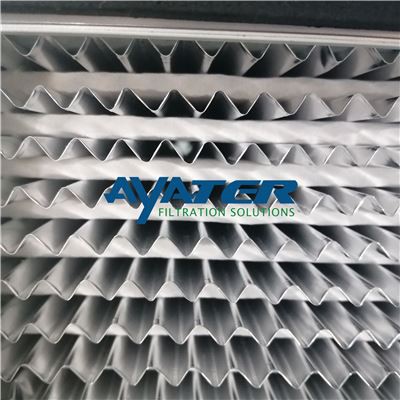

Separator: Aluminum foil

The maximum temperature: 80 ℃

Maximum humidity: 100% RH (non-fogging state)

Initial resistance: ΔPo ≤ 190Pa

Final resistance: ΔPmax = 450Pa

Efficiency: η ≥ 99.9% @ 2μm

Air volume: Q = 4200 m3 / h @ 164 Pa

Air Filter 5929-0101-20

Quality Control:

1. All filter components are subjected to a factory in-coming Quality Control checking and testing procedure.

2. Filter media are controlled by the Quality Control Laboratory to ensure all design parameters and test criteria meet specifications and performance results.

3. Throughout production & assembly, on line and laboratory controls & tests are made to ensure every perfect filter.

4. Representative filter from each batch type and production run are subjected to a complete test flow evaluation to determine efficiency, pressure drop and dust holding capacity.

5. To ensure that ex-factory products are maintained in perfect condition and are not damaged during transport to final destination.
