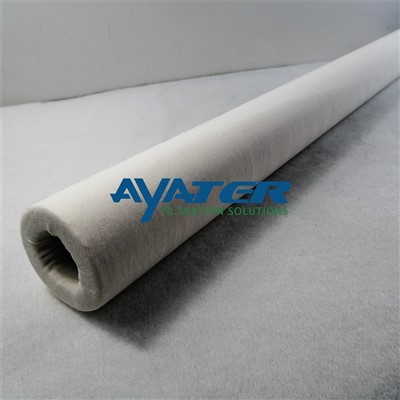

The FT-336-C-5 filter element is made of cotton material,with a fine filtration rating of 5 microns,it can efficiently remove various tiny contaminants. Measuring 76.2mm in O.D, 40.6mm in I.D, and 927mm in length, it has a standardized size for easy installation.

The FT-336-C-5 filter element is made of cotton material, offering excellent filtration performance and a certain degree of flexibility. With a fine filtration rating of 5 microns, it can efficiently remove various tiny contaminants. Measuring 76.2mm in O.D, 40.6mm in I.D, and 927mm in length, it has a standardized size for easy installation. The tin-plated steel skeleton enhances the mechanical strength of the filter element and improves its corrosion resistance, enabling it to adapt to complex environments.

|
Model |
FT-336-C-5 |
|
Filter Media |
Cotton |
| Micron Rating | 5 |
|
Replace The Differential Pressure |
20 Psid |
|
Length |
927 mm |
|
Outer Diameter |
76.2 mm |
|
Inner Diameter |
40.6 mm |
| Core Material | Tin-Plated Steel |
| Maximum Operating Temperature | 240 F |
| Flow Direction | Outside-to-inside |

Petrochemical industry: Filtration and separation of various oil products, chemical raw materials and products.
Natural gas treatment: The sock coalescing filter element FT-336-C-5 can be used to remove liquid water, condensate oil and solid impurities in natural gas. This helps to prevent pipeline corrosion and blockage, and improves the transportation efficiency and quality of natural gas.
Water treatment: In the process of industrial water treatment, the coalescing filter element can be used as a pre-treatment or advanced treatment device.




|
AF 336-C-5 |
FT 318-0-5 |
|
FT 436-0-2 |
FT 436-0-5 |
|
WC-336-C-50 |
Q-336-C-5 |
|
EP-336-C-5-G |
FTS-318-C-25 |
|
FO-664A1TB |
For more models, please contact us! |
