Parts marked "replacement" or "equivalent" may not be affiliated with the original manufacture, we use part numbers and names for cross referencing.

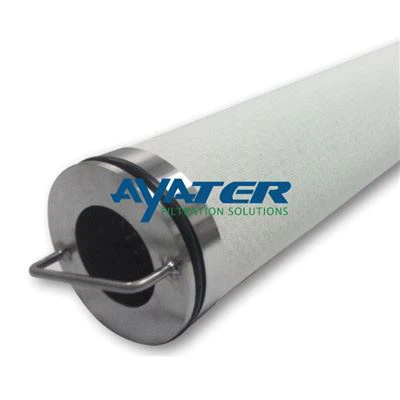

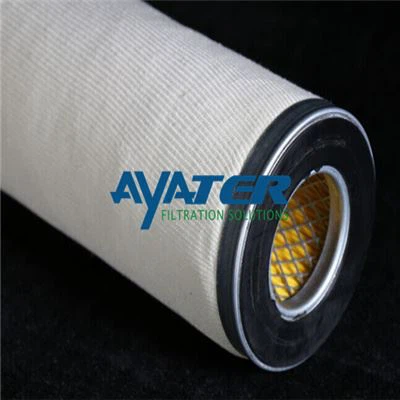

JEB 336-10 elements are large diameter, outside to inside flow direction gas filtration elements specifically designed for gas filtration. Through the use of highly compatible synthetic fibers in a varying scale of fiber diameters, this graded density depth style design provides the optimum combination of solid contaminant holding capability and liquid particle coalescing capability. The synthetic filter media is supported with a heavy-duty, spiral locked steel core. Tinned steel end caps are then mechanically secured to center core providing cartridge strength you can trust not to collapse or bypass when properly applied.
Performance
Micron Rating:10µ at 99.9% efficiency
Recommended Initial DP:< 0.5 psid
Recommended Change-Out DP:15 psid
Maximum Operating Temperature:240°F
Collapse Pressure:60 psid
Flow Direction:Outside to In
Configuration:Double Open End
Dimensions
Length:36 inches
Outside Diameter:4.5 inches
Inside Diameter:3.1 inches
Flow Pattern:Outside to In
Materials
Media:Polyester
Core:Tinned Steel
Supports:Needled Polyester
End Caps:Tinned Steel
Gaskets:Buna
