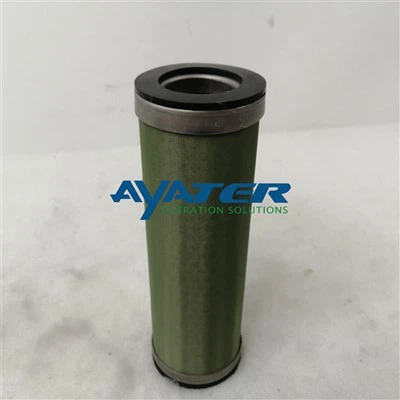

SO-636PV Separator Cartridge

The separation filter element is the second-stage filter element in the separator. Its function is to separate the water in the oil in one step. The material is often Teflon coated filter, which has good hydrophobic characteristics.

Send Inquiry→

Product Details
Technical Parameters

General Specifications

TCS medium is 200 mesh stainless steel screen coated on both sides with green Teflon. The screen is lockseam folded and fastened with an internal aluminum clip.
Tubes are aluminum.
End caps are aluminum and/or glass filled nylon.
Gaskets are Buna-N.
Maximum operating temperature is 200°F.
About the size, as shown in the picture below:

product-263-98
