Hankison E5 Filter Replacement Features

Ayater E5 Filter is suitable for fine water vapor and oil mist, which can be filtered to 0.01μm solid particles to reach the maximum residual oil content of 0.01ppm w/w, and almost all water, dust and oil are removed. First layers of multi-layer fiber medium and medium filter screen, filter the larger particles, pre filter second layers of multi-layer adhesive fiber medium before the air enters the second stage filter, filter fine condensate for E3 grade filter and dry machine, protect the function, after cold drying machine, ensure that the air is not oily.

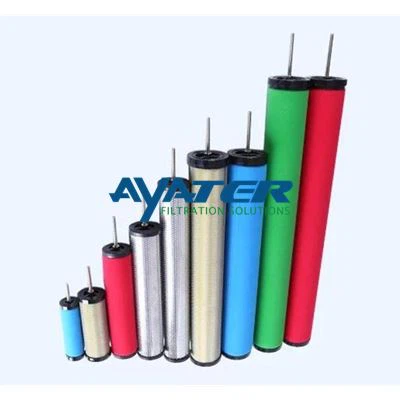

Hankison Line Filter E5-36 Replacement

Hankison Precision Filter Specification

E9 (C）	E7 (T）	E5 (A）	E3 (H）	E1 (F）	Rate Flow (min)	OD(mm)	H(mm)
16	16	16	16	16	1	42.5	89
20	20	20	20	20	1.72	42.5	150
24	24	24	24	24	2.9	60.5	167
28	28	28	28	28	4.9	60.5	277
32	32	32	32	32	7.2	68	335
36	36	36	36	36	11	68	450
40	40	40	40	40	14	83	520
44	44	44	44	44	18	83	670
48	48	48	48	48	22	83	820

level	Solid minimum particle	Filter Precision（PPM)
F（Removing oil and deodorizing filter core）	E1:0.01	0.001
H（Super high efficiency oil removal core）	E3:0.01	0.001
A（High efficiency oil removal core）	E5:0.1	0.01
T（Ventilated pipeline filter）	E7:1	1
C（Separation filter）	E9:3	5
