Looking for a reliable dust collector filter cartridge supplier? Get the P190884 replacement with Ultra-Tek media. Reduce downtime today. Request a B2B quote!

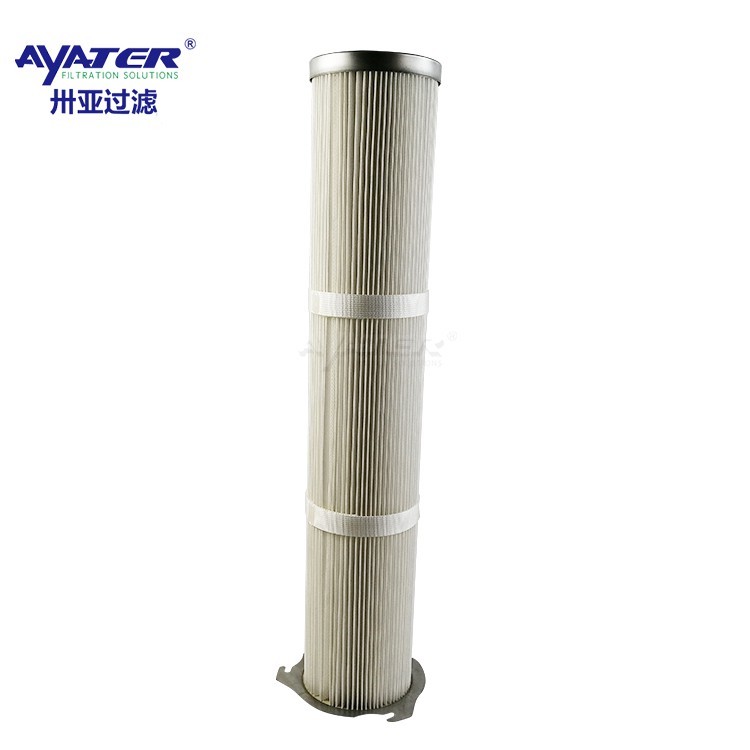

Relying on unverified vendors for silo venting components risks catastrophic workflow blockages. Partner directly with a premier dust collector filter cartridge supplier to source the P190884 replacement. Featuring an unobstructed 9.48-inch inner core and 11.10 m² of durable Ultra-Tek media, this liner-free unit handles dry, abrasive bulk powders flawlessly. Secure your facility's continuous pneumatic conveying operations with factory-direct precision, eliminating third-party supply delays and maintaining optimal exhaust performance.
Direct-Sourced Procurement Reliability: Engaging an established dust collector filter cartridge supplier streamlines your supply chain, guaranteeing rigorous quality assurance and exact dimensional fitment for heavy-duty extraction housings.
Dual-Open Plenum Integration: The Open/Open end cap architecture aligns perfectly with multi-tier baghouse plenums, creating a unified central channel for clean air to exit without aerodynamic turbulence.
Liner-Free Granular Shedding: By removing the outer galvanized mesh, granular particles-like sand or lime-bounce off the deep 51mm pleats directly into the collection bin, averting structural jamming and media abrasion.
| Industrial Procurement Data | Technical Specifications |
| Equivalent Part Number | Interchangeable Replacement for P190884 |
| Sourcing Category | dust collector filter cartridge supplier |
| Outer Diameter (OD) | 352 mm (13.84 inch) |
| Inner Diameter (ID) | 241 mm (9.48 inch) |
| Nominal Length | 660 mm (26.00 inch) |
| Active Filtration Area | 11.10 m² (119 ft²) |
| Pleat Configuration | 51 mm (2.00 inch) Pleat Height |
| Media Substrate | Ultra-Tek (Cellulose/Synthetic Blend) |
| End Cap Structure | Open Top / Open Bottom |
| Outer Protective Liner | No (Liner-Free Design |
| Temperature Threshold | 82 °C (180 °F) |
| Intended Operation | Dry Bulk Material Handling |

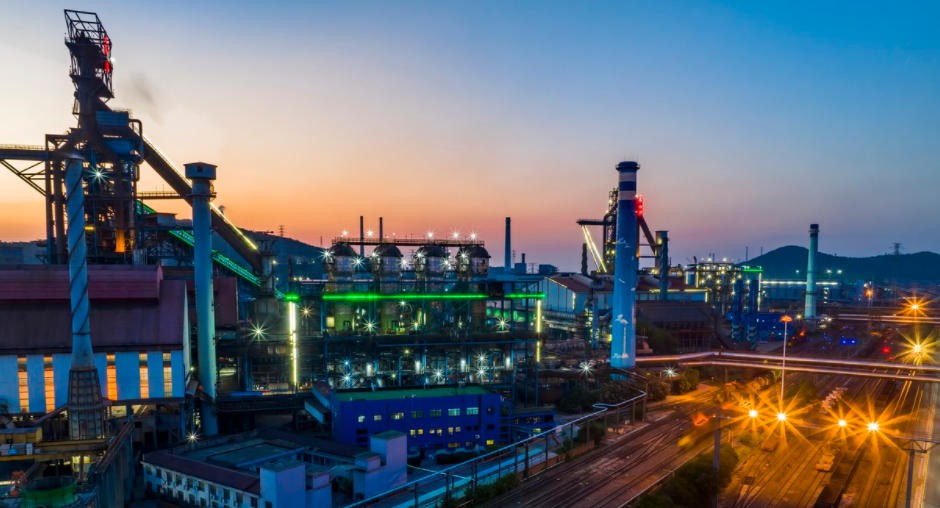

Steel Mills:
Vents bulk storage silos during the high-speed pneumatic loading of limestone and iron ore powders, capturing abrasive dust before it escapes into the plant atmosphere.

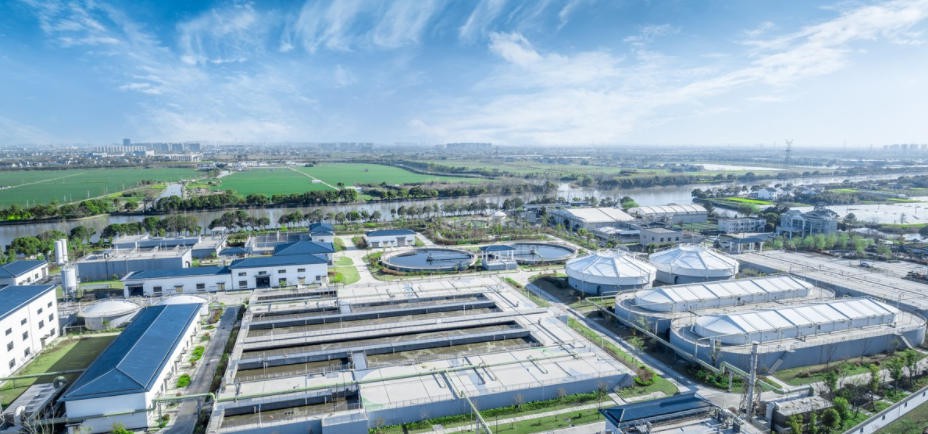

Water Treatment Facilities:
Filters airborne particulates in activated carbon and dry chemical dosing stations, ensuring a safe, uncontaminated environment for plant operators.
Shipbuilding & Repair:
Integrates into mobile blasting recovery systems, isolating heavy grit and rust debris generated during large-scale hull surface preparation.
HONOR
ISO 14001
ISO 9001
CE
SGS
Patent

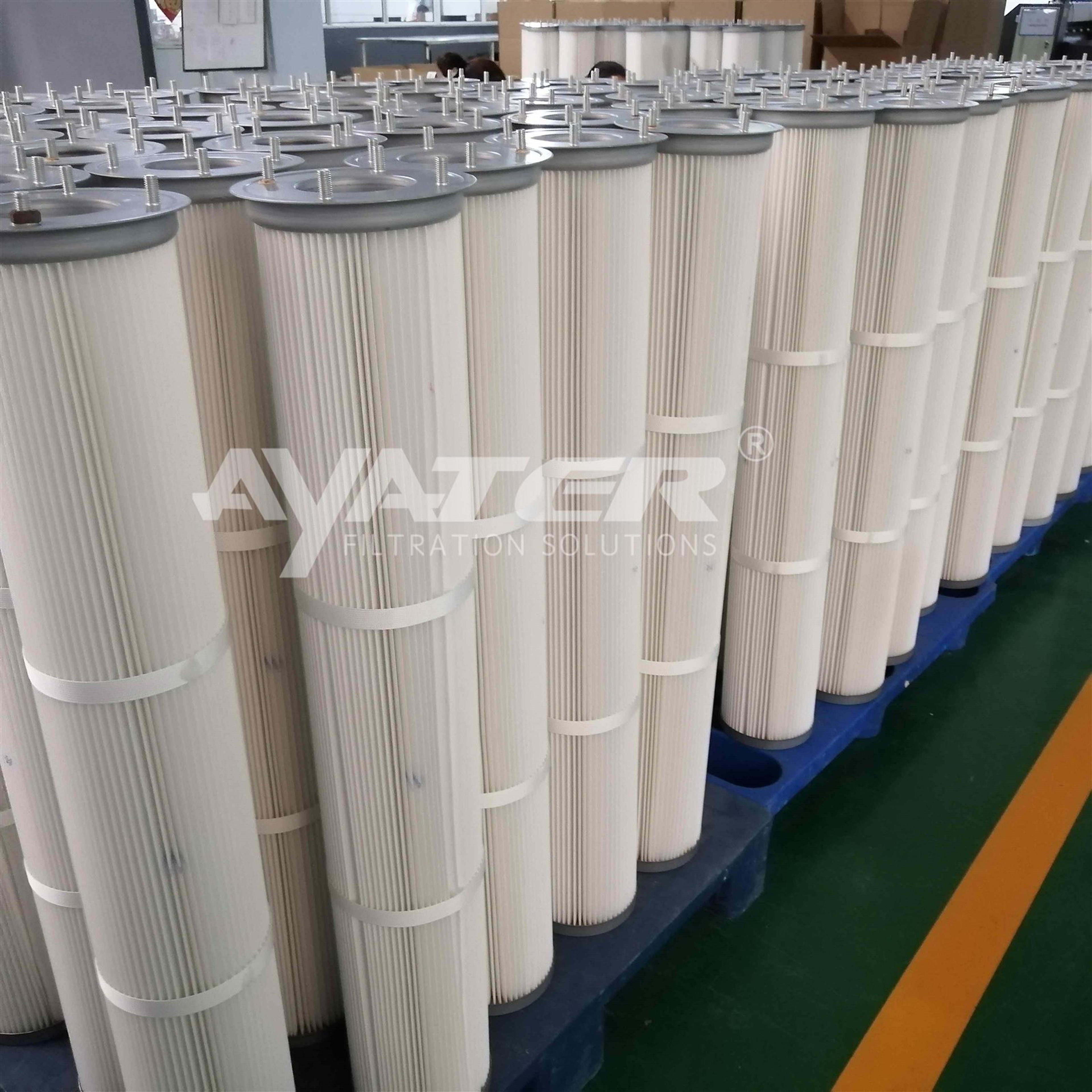

Vendor accountability defines Ayater's manufacturing process. As a vetted dust collector filter cartridge supplier, we enforce strict dimensional compliance and media permeability validation on every P190884 replacement before global export. We equip international procurement managers with fully traceable, heavy-duty filtration assets designed for rigorous B2B compliance.
A prominent steel manufacturing facility experienced recurring filter blockages in their lime injection silos. The metal outer liners on their previous filters were trapping coarse granular lime, leading to rapid pressure drops. By transitioning to Ayater as their dedicated dust collector filter cartridge supplier, they implemented the liner-free P190884 interchangeable unit. This direct-to-factory upgrade solved the granular jamming instantly. The robust Ultra-Tek media extended the replacement cycle by 6 months and reduced their annual filter procurement budget by 22%.
Fluid Dynamics in Open/Open Stacked Silo Filters
When designing filtration for tall, narrow bulk material silos, engineers rely on vertically stacked filter arrangements. This requires cartridges with an "Open/Open" end cap configuration. In a stacked array, two or three 26-inch cartridges (like the P190884) are locked together via a central tie-rod.
The engineering challenge here is managing internal air velocity. The dirty air is drawn from the outside in, and the clean air travels downward through the hollow core of the stacked filters. Because the P190884 features a generously wide 9.48-inch Inner Diameter (ID), it prevents "choke flow." If the ID were too narrow, the volume of clean air rushing down from the top filter would create immense friction inside the bottom filter, artificially raising the differential pressure. The wide 9.48" core acts as a spacious clean-air plenum, maintaining low internal velocities and ensuring optimal, energy-efficient exhaust flow.
Ayater Filtration represents a formidable manufacturing force in the global industrial air separation market. By operating state-of-the-art robotic assembly lines and sourcing industrial-grade synthetic media, we act as a highly capable dust collector filter cartridge supplier. Our core mission is to bypass intermediary supply bottlenecks, empowering global plants to achieve emission compliance and operational excellence continuously.
| P191077 | P191107 |
| P191115 | P191116 |
| P191119 | P191125 |
| P191133 | P191137 |
| P191139 | P191140 |
| P191145 | P191151 |
| P191177 | P191178 |
| P191194 | P191197 |
| P191203 | P191204 |
| P191211 | P191214 |
If you want specific information about other models, please contact us directly!
