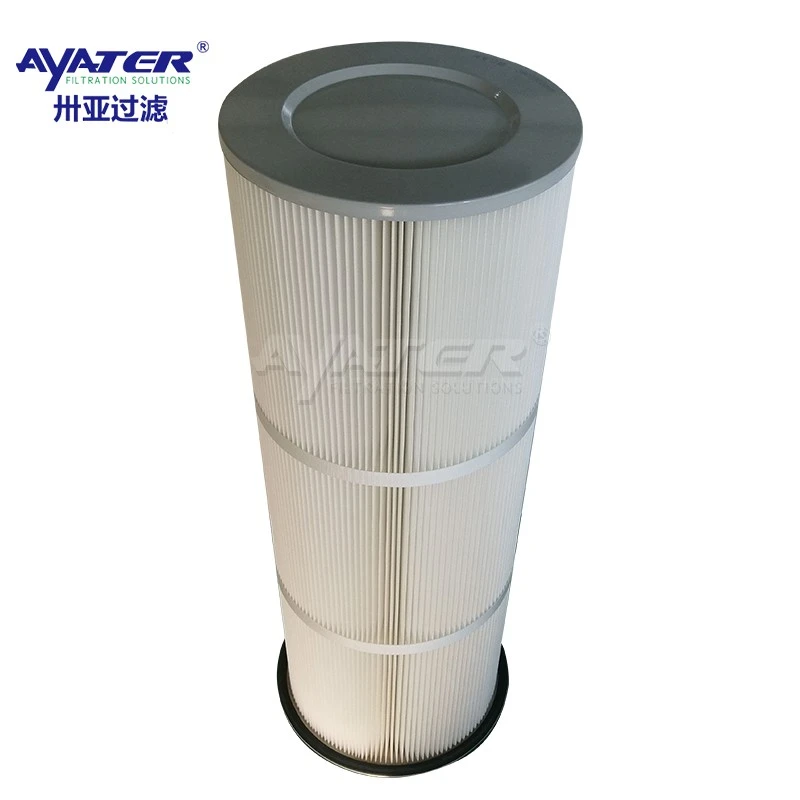

P191564 Stainless Steel Skeleton Dust Filter Cartridge

Open-End Configuration – Versatile Integration
With both top and bottom open, this cartridge integrates seamlessly into existing dust collector housings. The 9.479-inch inside diameter and 13.8-inch outside diameter ensure compatibility with standard mounting systems .

Pulse-Jet Cleaning Compatibility – Reduced Maintenance
The stainless steel skeleton and open construction enable efficient pulse-jet cleaning, allowing accumulated dust to be effectively released from the filter surface. This reduces pressure drop buildup and extends filter life .

A Midwest U.S. steel fabrication facility experienced frequent filter failures and excessive pressure drop in their plasma cutting fume extraction system due to media collapse and end cap corrosion. After switching to this replacement for P191564, the stainless steel skeleton provided the structural rigidity required for pulse-jet cleaning. Filter service life extended from 6 to 14 months, system pressure drop decreased by 32%, change-out frequency and downtime reduced by approximately 45%, and outlet dust concentration remained consistently below regulatory limits.

Industrial dust filter cartridges capture particles through interception, inertial impaction, and diffusion mechanisms, with pleated design maximizing media surface area within a compact footprint. The stainless steel skeleton in this replacement for P191564 serves a critical structural function during pulse-jet cleaning: the high-pressure pulse generates a shockwave that flexes the media and dislodges the dust cake, while the skeleton maintains pleat spacing and prevents media collapse, ensuring consistent cleaning efficiency and extended service life. For combustible dust applications, stainless steel eliminates galvanized coating as a potential ignition source, and when paired with fire-retardant polyester or PTFE membrane media, meets NFPA compliance requirements.

Ayater is a B2B industrial filtration manufacturer operating from a purpose-built facility featuring automated pleating lines, CNC-controlled end cap bonding stations, and dedicated skeleton assembly areas. Each replacement for P191564 follows a structured production workflow with quality checkpoints at every stage. Our team brings years of experience in dust collector filter production, with engineering support available for custom specifications and application consultation, while maintaining raw material inventory to support responsive lead times. Ayater serves global industrial clients as a technical partner, committed to delivering quality and reliability in every shipment.
