Optimize stacked baghouses with the P191882 replacement dust filtration element. 222 sq.ft area & open/open design reduces pressure. Request a B2B quote!
Restricting clean air exhaust in industrial baghouses generates severe back-pressure, leading to elevated energy costs. The interchangeable replacement for the P191882 Dust Filtration Element effectively resolves these centralized manifold bottlenecks. Utilizing a true open/open 26-inch cylindrical chassis and 222.64 sq.ft of precision-pleated media, it accelerates particulate shedding while minimizing internal aerodynamic friction, empowering facility managers to stabilize extraction networks efficiently.
Open/Open Manifold Integration: Built without solid bottom caps, these industrial replacement Dust Filtration Elements are designed to stack vertically, acting as a continuous aerodynamic conduit to channel clean air directly to the exhaust fan.
222.64 Sq.Ft Pleat-Tip Stress Relief: The high surface area distribution significantly decelerates the approach velocity of dirty air, preventing abrasive particulates from physically scouring and cutting the filtration media.
Rigid Inner Dimension Geometry: The 8.375-inch internal bore is structurally reinforced to resist negative vacuum implosion, keeping the exhaust pathway intact during heavy pneumatic surges.
| Industrial Separation Specifications | Verified Engineering Value |
| Aftermarket Crossover | Interchangeable Replacement for P191882 |
| Search Identifier | Dust Filtration Element |
| Exterior Dimension (OD) | 12.75 Inches (Approx. 323.8 mm) |
| Interior Bore Clearance (ID) | 8.375 Inches (Approx. 212.7 mm) |
| Full Component Span | 26.00 Inches (Approx. 660.4 mm) |
| Upper Interface | Open Collar |
| Lower Interface | Open Collar |
| Profile Configuration | Cylindrical Round |
| Media Surface Capacity | Approx. 222.64 Sq.Ft |

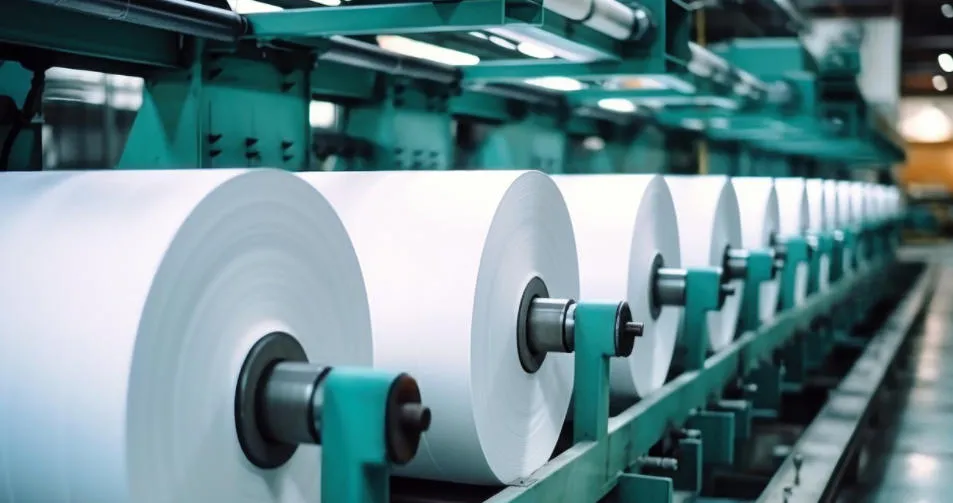

Paper Making:
Captures lightweight cellulose trimmings and airborne lint in paper cutting zones. The open-core design prevents long fibers from creating internal aerodynamic blockages.
Power Plants:
Filters abrasive, unburned carbon and fly ash at conveyor transfer points, maintaining safe ambient air quality for baseload facility workers.
Metallurgy:
Manages extreme particulate influxes during ore crushing and sintering, leveraging the massive 222 sq.ft area to sustain continuous extraction operations.
HONOR
ISO 14001
ISO 9001
CE
SGS
Patent
Transparent B2B manufacturing drives Ayater's global operations. Each interchangeable Dust Filtration Element is audited against stringent ISO frameworks. Before export, we conduct precise optical measurements on the 8.375" bore and pleat-density validations to ensure flawless stacking fitment, delivering dependable emission control hardware to facility managers worldwide.
A high-capacity paper mill struggled with elevated differential pressure alarms. Their legacy stacked filters featured narrow inner bores, choking the upward flow of clean air and significantly increasing the load on exhaust fans. By swapping to the Ayater P191882 compatible Dust Filtration Element, the facility capitalized on the wide 8.375-inch open/open architecture. This modification instantly reduced internal air velocity resistance, dropping the system pressure by 35% and saving substantial electrical energy over a 12-month cycle.
Managing Vertical Plenum Velocity (VPV) in Stacked Arrays
In high-capacity extraction baghouses, engineers often stack cartridges (using open/open designs) to double the filtration area without increasing the machine's footprint. However, this creates a profound aerodynamic challenge: Vertical Plenum Velocity (VPV).
As clean air from the bottom filter travels upward, it must pass directly through the hollow core of the top filter. If the inner diameter is inadequate, this merging airstream accelerates violently. This creates turbulent friction-commonly referred to as "choke flow"-that artificially inflates the differential pressure and forces the exhaust fan to consume more electricity. The calibrated 8.375-inch internal diameter of this specific cartridge functions as an optimized exhaust conduit. It effectively mitigates VPV, ensuring the reverse-pulse energy propagates downward seamlessly while the cleaned air escapes upward without parasitic drag.
Functioning at the intersection of fluid mechanics and industrial manufacturing, Ayater commands highly automated, data-driven production centers. By utilizing precision rotary pleaters and specialized urethane bonding robotics, we forge heavy-duty air separation parts. Our core objective is to dismantle third-party supply barriers, directly equipping international plants with the uncompromising filtration tools needed for safe, compliant, and continuous B2B production.
| P527078 | P527079 |
| P527080 | P527081 |
| P528464 | P529552 |
| P531017 | P533788 |
| P535058 | P535114 |
| P543107 | P546761 |
| P546762 | P606090 |
| P607376 | P608654 |
| P613439 | P775220 |
| P778311 | P780135 |
If you want specific information about other models, please contact us directly!
