Ayater Filtration supplies high-performance replacement elements and clogging indicators for the DF series. Our elements feature advanced glass fiber media for superior dirt-holding capacity, while our VD and VM indicators ensure precise monitoring of contamination levels. Upgrade your system's reliability with Ayater components.

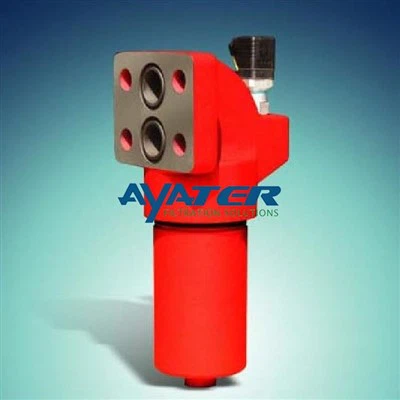

The performance of any hydraulic filter housing is only as good as the element inside it. Ayater replacements for the DF MA QE series are manufactured using state-of-the-art filtration media. Our elements are designed to meet the rigorous demands of high-pressure systems (up to 315 bar), where flow surges and viscosity changes are common.
Filtration Media and Ratings
We offer elements in various filtration ratings to match your ISO 4406 cleanliness targets.
Type ON / BH4HC: Optimized for high dirt-holding capacity and low pressure drop. Available in 1, 3, 5, 10, 15, and 20 micron absolute ratings.
Type W/HC: Wire mesh media for coarse filtration or high-viscosity fluids (25, 50, 100, 200 micron).
Structure: Multilayer construction supports the media against differential pressures, preventing collapse even when the element is fully loaded.
Clogging Indicators: Predictive Maintenance
Waiting for a system to fail before changing a filter is costly. Ayater provides replacement Clogging Indicators that alert operators exactly when the element requires changing.
Indicator Types:
Differential Pressure Indicators (Type VD):
These measure the pressure difference between the inlet (dirty side) and outlet (clean side). When the Delta P reaches 5 bar (standard setting), the indicator signals. These are rated for operating pressures up to 420 bar.
Type A: With screw plug in indicator port.
Type B: Visual (Pop-up).
Type C: Electrical switch.
Type D: Visual and Electrical combination.
Visual Indicators (Type VM):
Suitable for pressures up to 210 bar. Often used in mobile applications or lower pressure circuits. (Note: Requires adapter SO348 for high-pressure housings).
When ordering replacement elements, ensuring the correct dimensional fit is crucial for bypass protection. Ayater elements come with high-quality FKM or NBR seals pre-installed.
Element and O-Ring Specification Table
| Element Model | Element O-Ring Size | Bowl O-Ring Size | Back-up Ring Model | Housing Compatibility |
| 0060 D | 22 x 3 mm | 59 x 3 mm | DF...60 | DF...M A / Q E 60 |
| 0110 D | 22 x 3 mm | 59 x 3 mm | DF...60 | DF...M A / Q E 110 |
| 0140 D | 22 x 3 mm | 59 x 3 mm | DF...140 | DF...M A 140 |
| 0160 D | 34 x 3 mm | 80 x 4 mm | DF...160 | DF...M A / Q E 160 |
| 0240 D | 34 x 3 mm | 80 x 4 mm | DF...160 | DF...M A / Q E 240 |
| 0280 D | 34 x 3 mm | 80 x 4 mm | DF...280 | DF...Q E 280 |
| 0330 D | 48 x 3 mm | 117 x 4 mm | DF...330 | DF...MHE / Q E 330 |
| 0500 D | 48 x 3 mm | 117 x 4 mm | DF...500 | DF...MHE / Q E 500 |
| 0660 D | 48 x 3 mm | 117 x 4 mm | DF...330 | DF...MHE / Q E 660 |
| 1320 D | 48 x 3 mm | N/A | N/A | DF...MHE 1320 |
Electrical vs. Visual Monitoring
For automated plants, Ayater recommends upgrading from visual indicators (Type B) to electrical indicators (Type C). This allows the hydraulic system to trigger an alarm or an automatic shutdown via the PLC if the filter is clogged, preventing bypass operation where contaminated fluid could damage servo valves.
Why Choose Ayater Replacements?
Exact Interchangeability: Form, fit, and function match the OEM.
Cost Efficiency: Superior performance at a competitive price point.
Availability: Large stock of common sizes (0060 D to 0660 D)
Request a Quote
Ensure your hydraulic fluid remains clean and your system protected.
Contact us to order these replacement elements and indicators:
Element 0060 D 010 ON /-V
Element 0110 D 010 ON /-V
Element 0160 D 010 ON /-V
Element 0240 D 010 ON /-V
Element 0330 D 010 ON /-V
Element 0660 D 010 ON /-V
Indicator VD 5 D.X /-L24
Indicator VM 5 D.X
