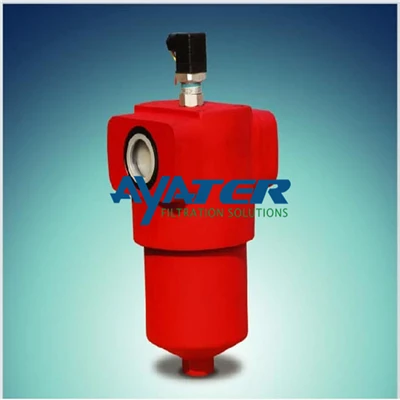

Duplex filters are used in hydraulic systems to separate solid materials from hydraulic and lubricating oils. They are designed to be installed into the pipeline. The filter element can be replaced without interrupting any operation.
Type | Duplex Pressure Filter |
Model Code Description | DFDKW/HC110QLC100D1.1/12-L24 |
Product number | 2210649 |
Flow | 13 gpm 50 L/min |
Operating Pressure [Max] | 315 bar 4568 psi |
Filter Rating | 100um |
Weight | 17.010 kg 37.5 lb |
Element Collapse Pressure Rating | 210 bar 3045 psi |
Width | 8.67 in 220.3 mm |
Height | 10.89 in 276.5 mm |
Part Number | Model Code Description | Part Number | Model Code Description |
2093808 | DFDKW/HC160QLF25LE1.1 | 2073865 | DFDKW/HC240QLF200A1.1/12 |
2094351 | DFDKBH/HC60QLC3A1.1/12V | 2073970 | DFDKBH/HC280QLF3LE1.1/12V-SO155H |
2094836 | DFDKBH/HC160QLF10C1.1/12V | 2203270 | DFDKBH/HC330QLL5D1.2/16V-L110 |
2202917 | DFDK ON 60QLC5D1.1/12V-L24 | 2204256 | DFDKBH/HC660QLL5D1.2/16V-L24 |
2063672 | DFDKW/HC240QLF25D1.1/12-L24 | ... | ... |
