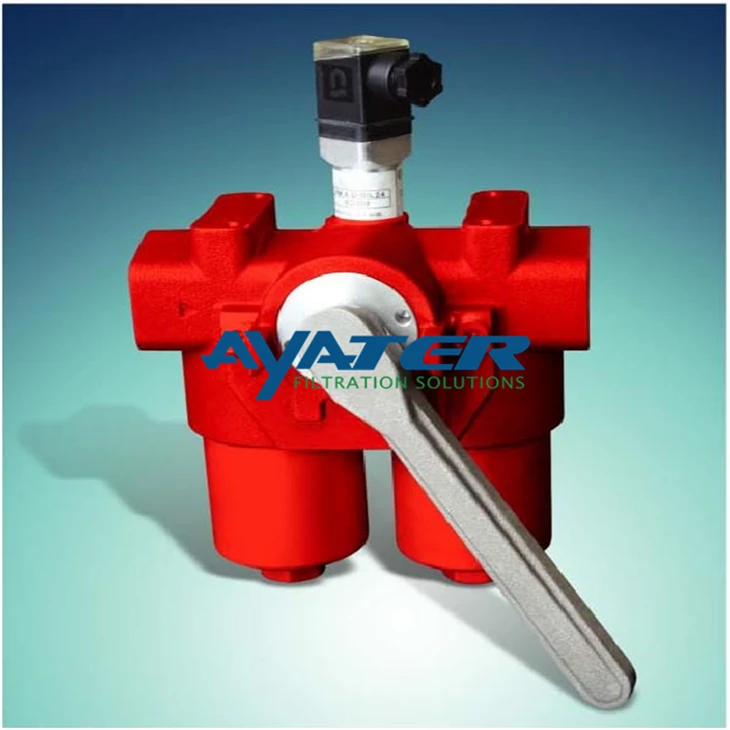

Duplex filters are also known as duplex switching filters. It is composed of two single-barrel filters connected in parallel, which has many advantages such as novel and reasonable structure, good sealing, strong circulation capacity, easy operation, etc., and has a wide range of applications and strong adaptability.
Numbering | 2084125 |
Model Code Description | FMNDBN/HC250LDF3D1.2/12V-B7-L24 |
Flow | 66 gpm250 L/min |
Operating Pressure [Max] | 207 bar3000 psi |
Filter Rating | 3um |
Bypass Valve | B7 |
Seal Material | Fluorocarbon Elastomer (FKM) (Standard) |
Type | Duplex Pressure Filter |
Weight | 27.12 kg59.80 lb |
Size | 250 |
Mounting Type | Inline 4 Mounting Holes |
Head Material | Ductile Iron |
Division | 11 |
Bypass Valve Cracking Pressure ΔP (Optional) | 7 bar101.5 psid |
Element Collapse Pressure Rating | 20 bar290 psi |
End Type | SAE Straight Threaded |
Width | 11.10 in |
Width | 282 mm |
Height | 15.49 in |
Height | 393.5 mm |
End Size | 1-1/2 in |
