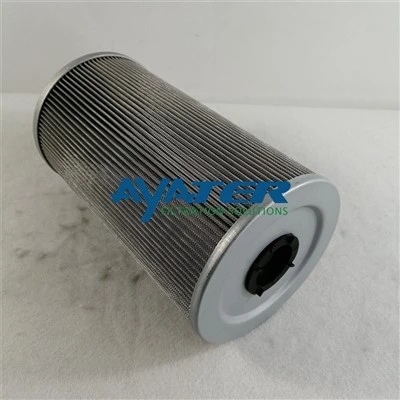

HF 410-20.077 Suction Line Filter

Hydraulic systems rely on a variety of HEPA filters to maintain fluid purity and protect sensitive system components. The suction line filter plays a very important role in effectively trapping suspended particles and contaminants and preventing them from entering the pump. The suction line filter can be considered as the last line of defense in the hydraulic system protection mechanism, ensuring that the system is free from any failure or component damage, and maintains excellent performance and reliability.

Below is a schematic diagram of pressure and flow:

Proper placement of filter elements is key to the success of hydraulic systems in preventing solid foreign matter penetration and avoiding further damage. Different types of filter elements have different mounting positions.

For example, a suction filter is intended to protect the pump from contaminants and should be installed on the pump's suction port or pipe. Line filters are designed to filter fine particles. Therefore, they should be installed within the fluid return line of the hydraulic system.

Correct placement of the filter element is essential for the successful operation of the hydraulic system and is the key to properly preventing damage.
