Ayater Hydraulic Oil Filter Features
• Guaranteed direct replacement in form, fit, and function.
• Our filters are backed by ISO 16889 multi-pass testing and other ISO/SAE test protocols.
• It has the charateristics of high filtration efficiency, large amount of pollutants, high filtration precision and low cost.
• Large oil-passing capacity, low original pressure loss and large dirt holding capacity.

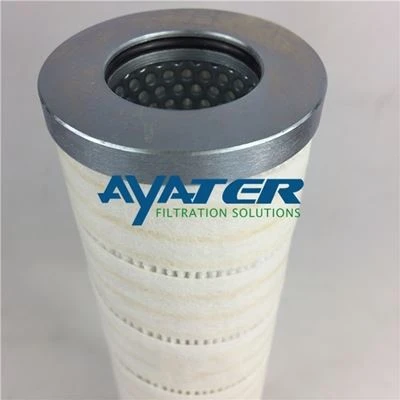

Oil Filter Element HC9601FDP13Z
 |  |
 |  |
Filter HC9601FDP13Z Specification
OEM Part Number | HC9601FDP13Z |
Efficiency | Beta 2.5[c] >= 1000 (ISO 16889 & DFE) |
Collapse Rating | 3000 |
Max Temp (F) | 225 |
Adhesive | Epoxy |
By;Pass | None |
End Cap | Corrosion Resistant CS/AL |
Flow Direction | Out/In |
Media Type | Microglass supported both sides |
Recommended Change Out (psid) | X |
O.D. | 3.1 |
Length | 12.9 |
Seal Material & Type | Viton O;Ring |
Quantity per Carton | 1 |
Weight per Filter (lbs) | 5.0000 |
HC9601FDP13Z Cross Reference
D142G03BV; HP61L132MV; 02059364; 02062410; 11113D03BH; H960113003; H960113003BH3; H960113003BH3V; MP4005; CHP627F03YN; HC9601FDP13H; HC9601FDP13Z; HC9601FKP13H; HC9601FKP13Z; HC9601FUP13H; HC9601FUP13Z; 927182; 927185; SBF960113S1B; SBF960113S1V; SBF960113Z3B; SBF960113Z3V; SP090F03B; V6024B4H03; V6024B4V03; V6024V4H03; HF167411
Our Service
OEM and ODM order are accepted, Any kind of logo printing or design are available.
Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.
Quality guaranteed and thoughtful after-sales service.
Accept any quality tests.
Package Details:
PP bag inside, Inner carton, Export carton outside, or Wooden box as your requirement.
