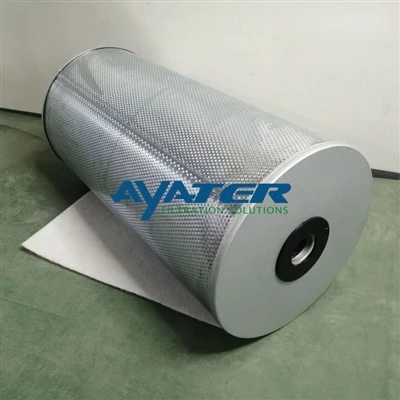

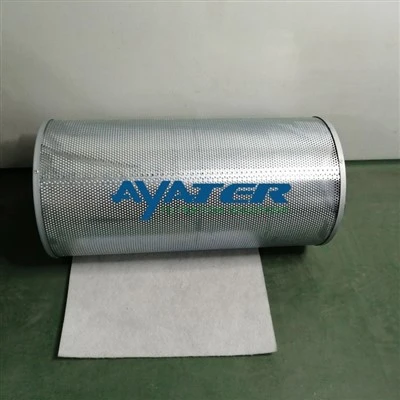

The 1122-C activated carbon filter is a cylindrical activated carbon canister with activated carbon material inside, which is highly porous and has a large surface area, allowing it to effectively adsorb impurities and contaminants from the fluid. 1122-C activated carbon filter can be used to...
The 1122-C activated carbon filter is a cylindrical activated carbon canister with activated carbon material inside, which is highly porous and has a large surface area, allowing it to effectively adsorb impurities and contaminants from the fluid. 1122-C activated carbon filter can be used to filter impurities such as amine, selexol, water, glycol, sulfinol, lubricating oils, etc.
Outside diameter: 279.4mm
Inner diameter: 39.6mm
Length: 565.2mm
End caps: Plated steel
Maximum temperature: 149ºC
Maximum differential pressure: 6.2 bar
Flow direction: outside-to-inside
Recommended flow rate: 4.92 lpm per canister
Model | Outside diameter | Inner diameter | Length |
618-C | 158.7 mm | 66.675 mm | 463.55 mm |
636-C | 152.4 mm | 88.9 mm | 914.4 mm |
719-C | 184.2 mm | 57.2 mm | 488.95 mm |
720-C | 184.2 mm | 39.6 mm | 520.7 mm |
720-C-2.25 | 184.2 mm | 57.2 mm | 520.7 mm |
722-C | 188 mm | 39.6 mm | 565.2 mm |
1120-C | 279.4 mm | 57.2 mm | 514.4 mm |
1122-C-2.25 | 279.4 mm | 57.2 mm | 558.8 mm |
1122-C-2.25 N | 279.4 mm | 57.2 mm | 565.2 mm |
