Ayater Spin-on Oil Filter Advantages
Efficient filter for modern hydraulic systems
Small space requirement through compact design
Minimal pressure drop through optimal flow design of components
Guaranteed separation according to ISO 16889 multipass test
Elements with high differential pressure stability and dirt holding capacity
Customer-specific printing on request

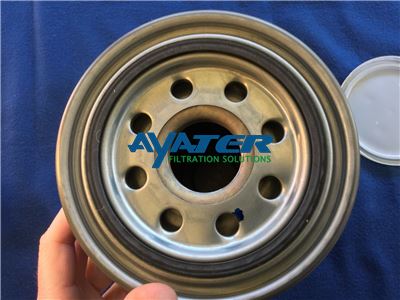

Spin-on Filter Mahle HC35 Replacement
 |  |
Gearbox Filter Mahle HC35 Specification
Length | 308.102mm |
Thread Size | 1 1/2-16 UN |
Weight | 2.29 kgs |
Efficiency Beta 1000 | 11 Micron |
Cube | 0.01 Cubic Meters |
OD | 135.382mm |
Ayater Wind Turbine Filter Parameters
Model | Dimensions(mm) | Model | Dimensions(mm) |
HC8300FKS24H-YC11B | ∅152*598.5 | 01.NR.1000.3VG.10.B.P | ∅154*400 |
HC8300FKS30H-YC11 | ∅152*751 | 01.NR1000.6VG.10.B.V | ∅154*400 |
HC8300FKS39H-YC11 | ∅152*978 | 01NR.1000.32227.10VG.25G.25.B.V.S1 | ∅160*502 |
HC8300FKS16H | ∅152*427 | 01NL.400.10VG.HR.E.P | ∅79*428 |
HC9600FKN8H | ∅78*210 | 73.0135 H10XL/G40-A00-0-M | ∅140*989 |
HC4754FKN13H | ∅80*331 | 65.1300H10XL/G40-000-B4-M | ∅140*482 |
HC9020FKN8H | ∅45*209 | 65.2600H10XL/G40-000-B4-M | ∅143*921 |
1300R010BN4HC/V-B4-KE50 | ∅143*482 | H1300 RN2010/SONDER WK | ∅143*478 |
2600R010BN4HC-B4-KE50 | ∅143*921 | H2600 RN 2010/SONDER WK | ∅143*917 |

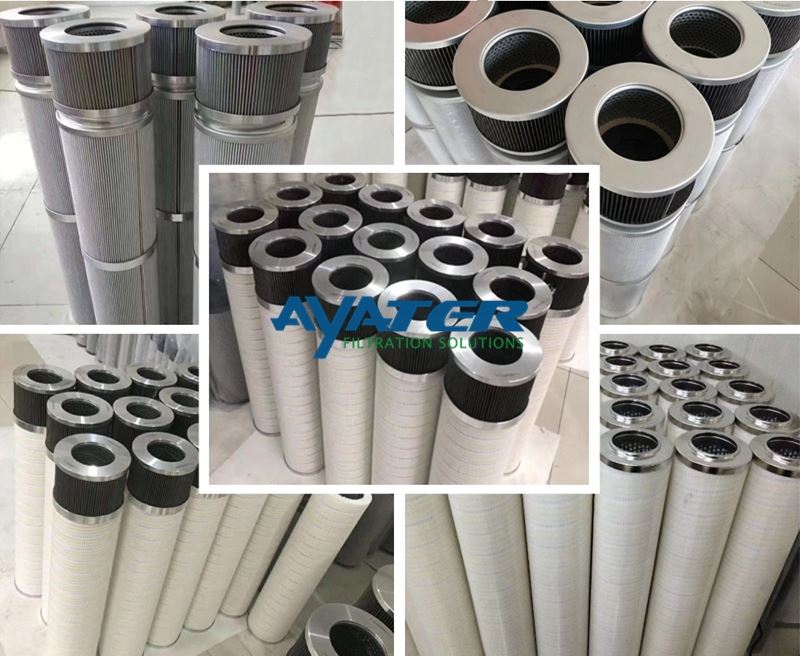

Ayater Wind Turbine Filter Replacement
