The PSC05-20-S-DOE filter cartridge is a Dynalloy series filter cartridge made of high-quality 316 stainless steel material, which is durable, corrosion-resistant, and easy to clean. The unique feature of this cartridge is its sintered porous metal powder structure, which is made by pressing a...

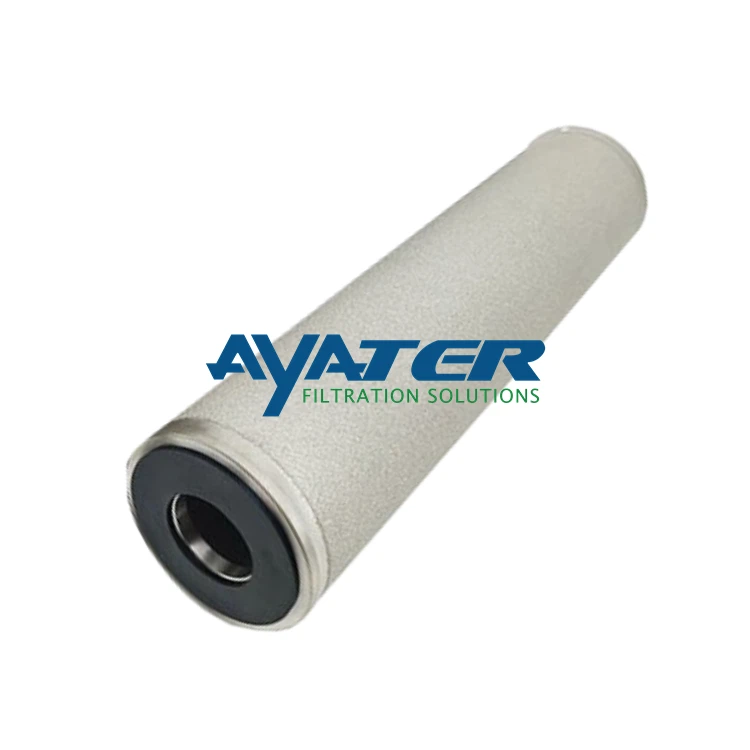

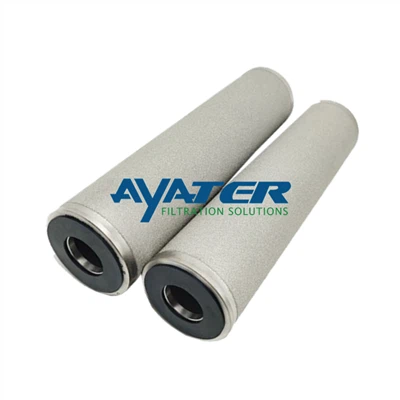

The PSC05-20-S-DOE filter cartridge is a Dynalloy series filter cartridge made of high-quality 316 stainless steel material, which is durable, corrosion-resistant, and easy to clean. The unique feature of this cartridge is its sintered porous metal powder structure, which is made by pressing a mixture of metal powder particles together under high pressure and then sintering at high temperatures. The result is a high-density porous filter media that allows fluids or gases to pass through easily while trapping impurities within. This porous metal filter element is ideal for a variety of industrial applications, including water treatment, oil and gas production, food processing, pharmaceutical, and chemical processing.
Product Model | PSC05-20-S-DOE |
Length | 20 inches |
Outside Diameter | 2.5 inches |
Filter Material | 316 SS |
Maximum Temperature | 399˚ C |
Maximum Pressure | 172.4 bar |
Type | Cylindrical Dynalloy Filter Cartridge |
PSC03-20-S-DOE | PSC03-20-S-NPT | PSC03-20-S-M3 | PSC03-20-S-M6 |
PSC04-20-S-DOE | PSC04-20-S-NPT | PSC04-20-S-M3 | PSC04-20-S-M6 |
PSC05-20-S-DOE | PSC05-20-S-NPT | PSC05-20-S-M3 | PSC05-20-S-M6 |
PSC06-20-S-DOE | PSC06-20-S-NPT | PSC06-20-S-M3 | PSC06-20-S-M6 |
PSC09-20-S-DOE | PSC09-20-S-NPT | PSC09-20-S-M3 | PSC09-20-S-M6 |
PSC11-20-S-DOE | PSC11-20-S-NPT | PSC11-20-S-M3 | PSC11-20-S-M6 |
PSC12-20-S-DOE | PSC12-20-S-NPT | PSC12-20-S-M3 | PSC12-20-S-M6 |
The above are some of the models we have listed, if you need other models, please contact us directly! | |||
