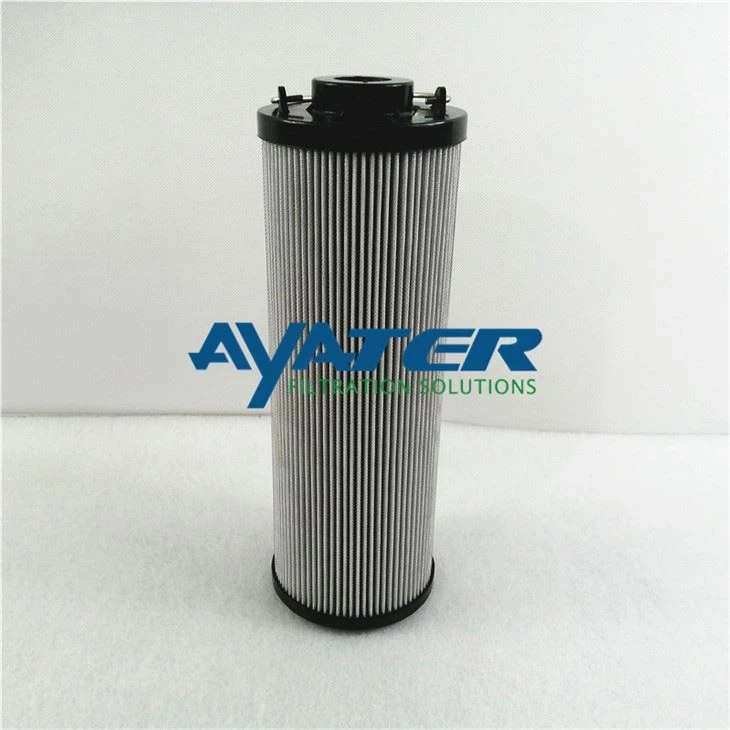

Filter Cartridge Filtration Hydac Hydraulic Oil Filter 1700r010on 1700r010bn3hc

Customized hydraulic filter cartridge Ayater Hydraulic Filter Performance ▪ Certified work processes in accordance with ISO 9001:2000 (quality management), DIN EN ISO 14001:2005 (environmental protection) as well as OHSAS 18001: 2007 (occupational health and safety) ▪ Material: imported USA HV...

Filter Cartridge Filtration Hydac Hydraulic Oil Filter 1700r010on 1700r010bn3hc

To promote the development of the company, our primary task is to ensure the quality of our Taisei oil filter, PALL Filter, UFI fuel filter so as to gain the trust of our customers. We grasp market development trends and adapt to market competition to increase our industry competitiveness. Our country provides the private enterprise with new innovation market space and development space to create more brilliant achievements possible for them. According to different customer needs, we provide you a variety of styles of products. We always firmly believe that the development of an enterprise must have a broad vision, a continuous spirit of innovation, and timely adjustment of development strategies according to market needs.

Customized hydraulic filter cartridge


Ayater Hydraulic Filter Performance

▪ Certified work processes in accordance with ISO 9001:2000 (quality management), DIN EN ISO 14001:2005 (environmental protection) as well as OHSAS 18001: 2007 (occupational health and safety)

▪ Material: imported USA HV fiber glass/South Korea oil paper/304, 316 stainless steel mesh or domestic material, PP, fiber glass cotton and so on...

▪ Usage: Used for hydraulic, lubrication system pressure oil filtration, used to filter out the pollutants in the system to ensure the normal operation of the system

▪ Good temperature and corrosion resistance, can be used under Maximum temperature for a long time, resistant to nitric acid, alkali, organic solvents, pharmaceutical corrosion


Hydac Filter Element 0500R0100N-KB

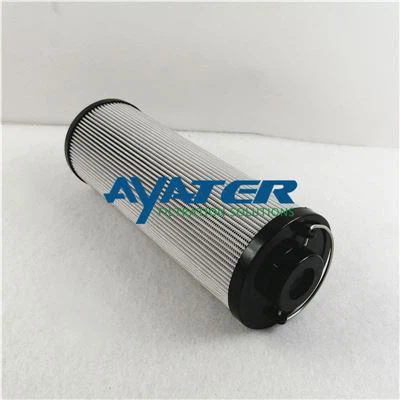

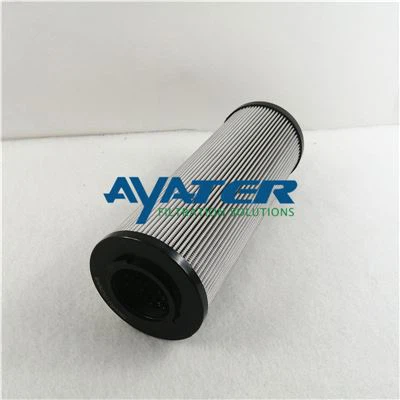

0500R0100N-KB(4)_0500R0100N-KB(5)_

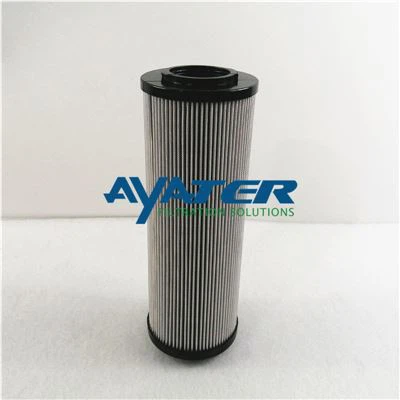

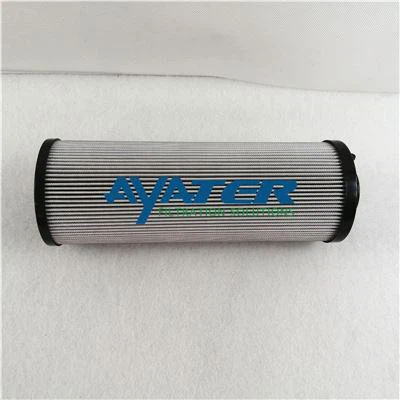

0500R0100N-KB(3)_0500R0100N-KB(1)_


Hydac Filter 0500R010ON Specification

OEM Part Number

0500R010ON

Efficiency

Beta12[c] >= 1000 (ISO 16889 & DFE)

Collapse Rating

150

Max Temp (F)

225

Adhesive

Epoxy

By-Pass

Yes, 45 psid

End Cap

Plated CS

Flow Direction

Out/In

Media Type

Microglass supported both sides

Outer Body

N/A

Recommended Change Out (psid)

25

O.D.

3.63

Length

10.8

Seal Material & Type

Viton O-Ring

Quantity per Carton

1

Weight per Filter (lbs)

4.0000


Ayater Hydraulic Filter Replacement

As well as original filter elements for our own filter housings, Ayater also provides access to a comprehensive range of replacement filter elements. They match the quality and can beinstalled in the products of for example:

Argo-Hytos

Donaldson

Taisei Kogyo

Hilco

Hydac

Internomen

Mahle

MP Filtri

Pall

Parker

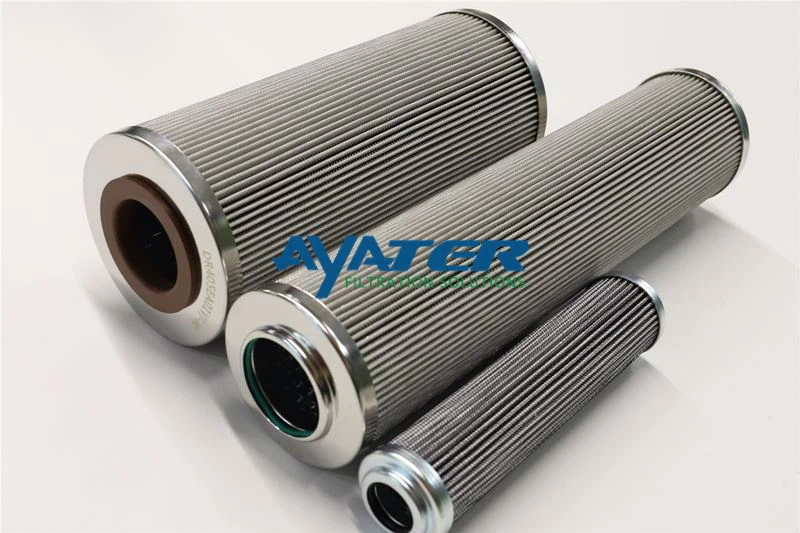

Ayater filter

We adhere to the tenet of 'Integrity, Integrity, Focus on Innovation' and maintain our leading position in the industry of Filter Cartridge Filtration Hydac Hydraulic Oil Filter 1700r010on 1700r010bn3hc. In order to practice 'excellent quality comes from technological innovation', our company has spent a lot of effort in developing new products. We believe that as long as we continue to implement the company's core values, we will be able to achieve mutual benefit and win-win results with our customers and create a brilliant future!
