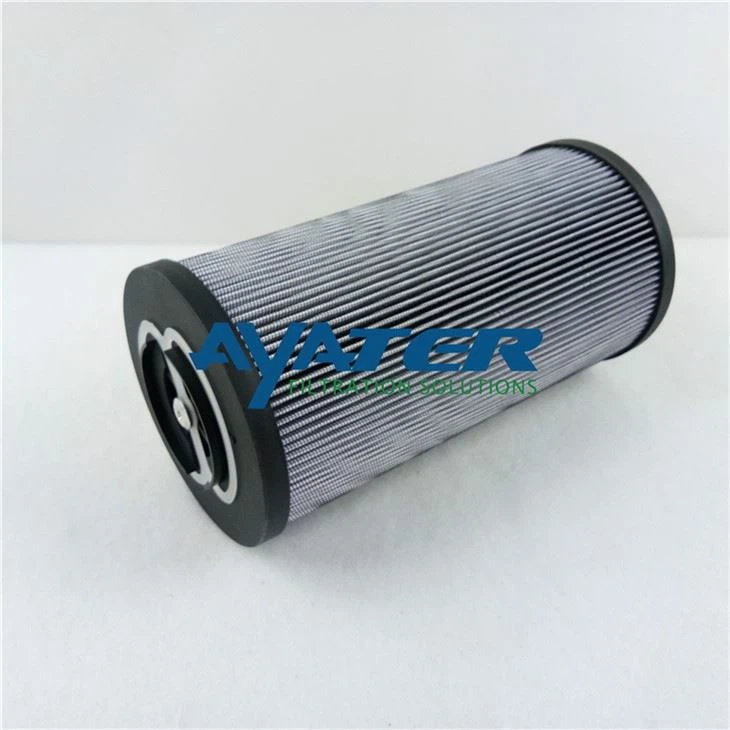

Replace MP Filtri Suction Filter Str1404sg1m90p01 Hydraulic Oil Filter Element

With our development strategy of 'satisfying customer needs as the center, improving customer benefits as the foundation, technology as the backing, market-oriented and quality as the guarantee', we will manufacture high-quality Atlas Copco Inline Filter, Hifi Filter Element Cross Reference SH63899, Zander Filter Element and continue to meet and exceed customer needs. We persist in openness, tolerance, sincere cooperation, mutual benefit and harmony. Our company adheres to continuous innovation, keeps pace with the world's advanced technology and meets the needs of different users through continuous improvement. We believe with our consistently excellent service you can get the best performance and cost least products from us for a long term.

Ayater Filter Features and Benefits

• Attainable oil cleanliness up to ISO 12/8/3 (ISO 4406)

• Large oil-passing capacity, low original pressure loss and large dirt holding capacity.

• Filter elements with high pressure differential stability

• Composed of specially formulated filter media to provide the most effective combination of fluid particle separation, fluid compatibility and structural properties.

• Consistent filter efficiency, even at high differential pressure



Ayater Hydraulic Oil Filter Applications

• Turbine lube & hydraulic oils

• Compressor lube oil

• Water glycols

• Synthetic lubricants

• Petroleum based fluids

• Cost-effective replacement for Expensive OEM elements

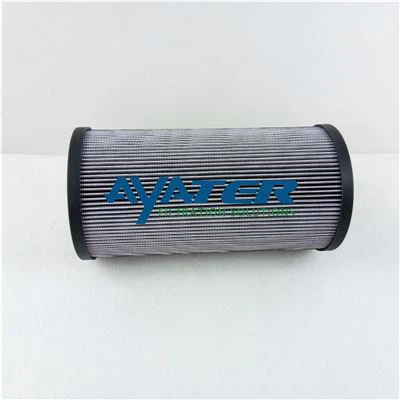

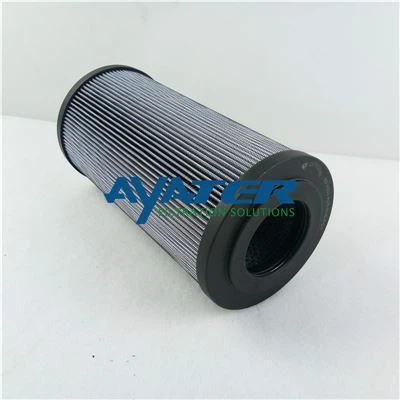

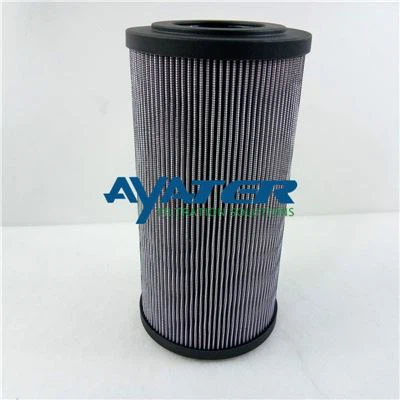

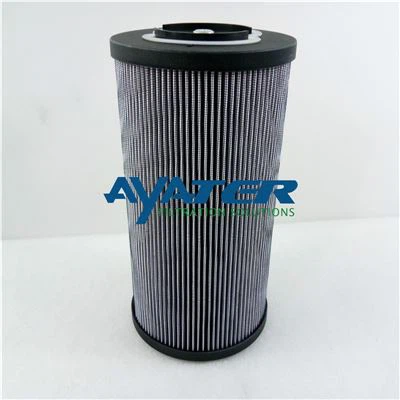

MF4003A25HBP01 Replacement



MF4003A25HBP01 Specification

Product Attribute	Specifications
Filter Type:	Hydraulic Return Line Filter Cartridge
Media Type:	Pleated Microglass Media
Overall Height:	10.00"
OD:	5.12"
Collapse Pressure:	145 psi
Operating Temperature:	-13° to 250°F
Direction of Flow:	Outside-In
Seal Material:	Buna [Viton available]
Micron Rating:	25
Beta Ratio 1:	200/20.7
Beta Ratio 2:	1000/26.6
Bypass Valve Setting [BPVS]:	25 PSI
Fluid Types:	HH / HL / HM / HV / HFD
Media Available	Micron Ratings available
Pleated Microglass Media	3-micron, 6µm, 10µm, 25µm
Pleated Paper Media	3-micron, 10µm, 25µm
Stainless Steel Wire Mesh Media (304 SS)	25-micron, 60µm, 125µm



Quality test center

Our products through the following test:

ISO 2941 Collapse & Burst Resistant

ISO 2942 Material Compatibility with Fluids

ISO 2943 Material Compatibility with Fluids

ISO 3724 Flow Fatigue Characteristics

ISO 3968 Pressure Drop vs. Flow Rate

ISO 16889 Multi-pass Performance Testing



We have maintained good cooperative relations with other well-known brands for many years to ensure the quality of our Replace MP Filtri Suction Filter Str1404sg1m90p01 Hydraulic Oil Filter Element. If you are interested in our products, please feel free to visit our web site or contact us. In recent years, our company has firmly established a scientific outlook on development, closely focused on the strategic development plan of the group company, adhered to the development as the main line and market-oriented.
