High-flow water filter cartridge is processed by a variety of composite materials through special technology, with hydrophilic characteristics, it can not only filter out mechanical impurities in the medium, but also through demulsification, coalescence, so that the emulsified state of water is separated from the medium, and coalesced into larger water droplets, in order to facilitate further purification of the medium

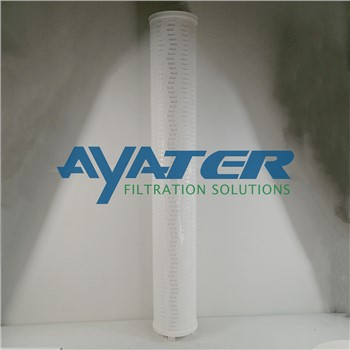

The 405-EAB-N316SS high flow filter cartridges are high efficiency, inside to outside flow direction elements specifically designed for the removal of solid contaminant in critical applications.
The 405-EAB-N316SS high flow filter cartridges is constructed of a high quality glass media. Large surface area pleated media cartridges are customizable and designed to provide the optimum combination of particle removal efficiency and contaminant holding capability.
Standard Micron Rating | 5 µ @ 99,98% |
Beta Ratio | 5,000 |
Recommended Change-Out DP | 35 psid |
Maximum Operating Temperature | 240 ° F |
Flow Direction | Inside to Out |
Configuration | Single Open End |
Length ： | 40inches |
Outside Diameter End-Cap： | 6.3 inches |
Outside Diameter Filter： | 6 inches |
Inside Diameter： | 2.94 inches |
Flow Pattern： | Inside to Out |
Quantity： | 1 per box |
Approx. Shipping Wt.： | 9 lbs. per box |
Box Dimensions： | 8” x 8” x 41.25” |
