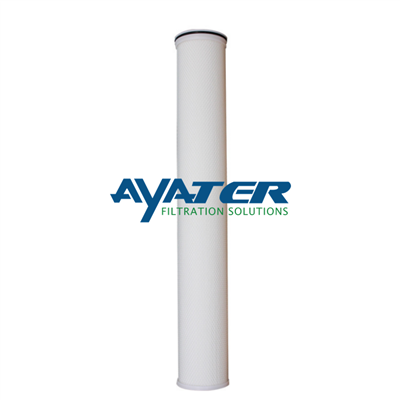

RCP010-20SPP high flow pleated cartridge is an efficient, reliable and excellent performance filter element. It is made of high-quality polypropylene material and has the advantages of high flow rate, low pressure difference, and high filtration accuracy. It has been widely used in many...
RCP010-20SPP high flow pleated cartridge is an efficient, reliable and excellent performance filter element. It is made of high-quality polypropylene material and has the advantages of high flow rate, low pressure difference, and high filtration accuracy. It has been widely used in many industries, such as food and beverage industry, biomedical industry, chemical industry and other fields.
When using the RCP010-20SPP high flow pleated cartridge, you can be confident that it will deliver outstanding performance when you need it. The filter element can withstand a certain amount of water pressure and ensures stable and uniform filtration effect. This means that during use, the water flow will not slow down due to clogging of the filter element, allowing the filtration process to be completed quickly.
Product model | RCP010-20SPP |
Height | 20.5 inches |
Outside diameter | 6.3 inches |
Inner diameter | 3 inches |
Filtration accuracy | 1μm |
Filter material | Polypropylene |
Sealing material | Silicone |
Industry | Industrial, food and beverage |
Model Number | Filtration accuracy | Height | Seals |
RCP010-40EPP | 1μm | 40.5 inches | EPDM |
RCP010-40SPP | 1μm | 40.5 inches | Silicone |
RCP010-40VPP | 1μm | 40.5 inches | Viton |
RCP010-60EPP | 1μm | 60.5 inches | EPDM |
RCP010-60SPP | 1μm | 60.5 inches | Silicone |
RCP045-20EPP | 4.5μm | 20.5 inches | EPDM |
RCP045-20SPP | 4.5μm | 20.5 inches | Silicone |
RCP045-20VPP | 4.5μm | 20.5 inches | Viton |
RCP045-40EPP | 4.5μm | 40.5 inches | EPDM |
RCP045-40SPP | 4.5μm | 40.5 inches | Silicone |
RCP045-60EPP | 4.5μm | 60.5 inches | Silicone |
RCP045-60NPP | 4.5μm | 60.5 inches | Buna-N |
RCP045-60SPP | 4.5μm | 60.5 inches | Silicone |
RCP100-20EPP | 10μm | 20.5 inches | EPDM |
RCP100-20VPP | 10μm | 20.5 inches | Viton |
RCP100-40EPP | 10μm | 40.5 inches | EPDM |
RCP100-40NPP | 10μm | 40.5 inches | Buna-N |
RCP100-40SPP | 10μm | 40.5 inches | Silicone |
RCP100-40VPP | 10μm | 40.5 inches | Viton |
RCP100-60EPP | 10μm | 60.5 inches | EPDM |
RCP100-60SPP | 10μm | 60.5 inches | Silicone |
RCP100-60VPP | 10μm | 60.5 inches | Viton |
RCP200-40EPP | 20μm | 40.5 inches | EPDM |
RCP200-40SPP | 20μm | 40.5 inches | Silicone |
RCP200-60EPP | 20μm | 60.5 inches | EPDM |
RCP200-60SPP | 20μm | 60.5 inches | Silicone |
RCP400-20EPP | 40μm | 20.5 inches | EPDM |
RCP400-40EPP | 40μm | 40.5 inches | EPDM |
RCP400-60VPP | 40μm | 60.5 inches | Viton |
RCP900-20EPP | 90μm | 20.5 inches | EPDM |
RCP900-40EPP | 90μm | 40.5 inches | EPDM |
If you want specific information about other models, please contact us directly! | |||
