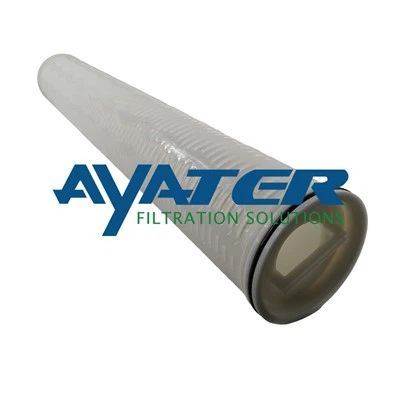

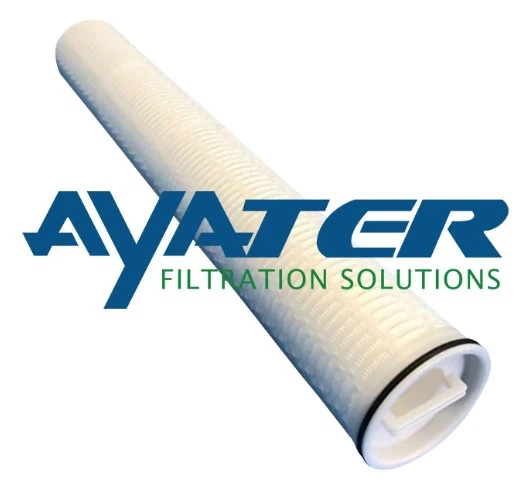

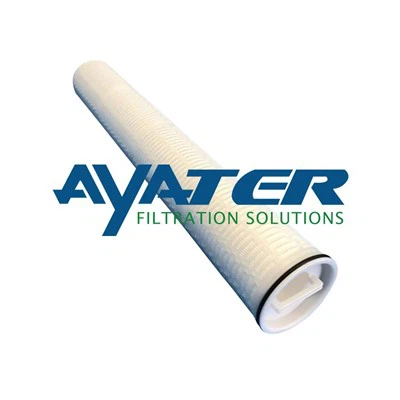

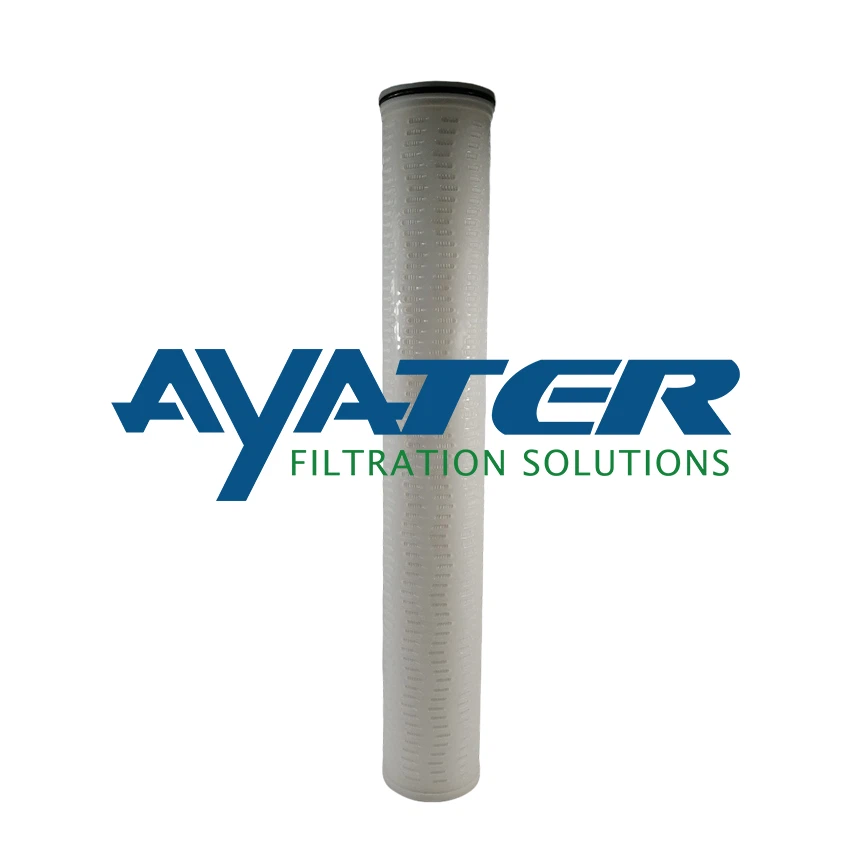

Liquid Filter Cartridge XP-L-4050E

The Liquid Filter Cartridge XP-L-4050E is a 6-inch diameter, 40-inch long high-flow filter cartridge that can filter high-flow liquids using a smaller number of filter cartridges and reduce the height of the filter housing by up to 50%. The PP skeleton with uniform external pore size is acid and alkali resistant, and the deep filtration structure with sparse outside and dense inside can withstand high pressure difference; the pleated filter layer expands the filtration surface area and improves filtration efficiency.

Model	XP-L-4050E
Type	Lean Amine Particulate Filter
Length	40 In
Precision	5µm
Media	Multi-Layer Pleated Polypropylene
Seal	EPMD
Outer Support	PP
End Caps	PP
Flow direction	Inside to Outside
PH Range	2-14
MAX. Temp	180°F/ 82°C
Changeout Pressure Differential	35 psid

Features



Features of Liquid Filter Cartridge XP-L-4050E

Sealed interface reduces risk of side flow

6" OD, 40" length for high flow

Handle lifting, easy to operate

Side open end, impurities are trapped in the filter cartridge, keeping the filter housing clean

Absolute precision filter membrane with multiple layers of PP filter membrane configuration, filtration efficiency can reach 99.8%

• Boiler feed water for power plants
• Raw material solvent filtration for biological and chemical industries
• Pure water for the electronics industry

More Models



XP-L-6400B	XP-L-4100E	XP-L-6100B
XP-L-4200E	XP-L-6100E	XP-L-6100V
More details,please contact us.
