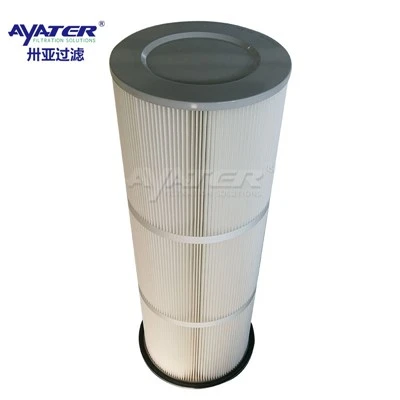

Replacement for P191563 industrial dust collection filter cartridge. 8.38" ID x 12.75" OD x 26" L, 222.6 sq ft media. Open-top/open-bottom round design for cartridge dust collectors. Ayater.
This replacement for P191563 is an industrial dust collection filter cartridge designed for standard cartridge collectors. The 26" round unit provides 222.6 sq ft of media surface. Open end caps enable pulse-jet cleaning. Suitable for dry fume and powder capture across general industrial environments.
The extended 222.6 sq ft pleated surface promotes even dust distribution across the cartridge. This larger area slows the rate of pressure-drop increase, enabling longer uninterrupted production runs between cleaning cycles.
The open-top/open-bottom configuration permits compressed air pulses to traverse the full cartridge length. This direct flow path dislodges accumulated dust effectively, restoring differential pressure to near-initial levels after each cleaning event.
| Type | Industrial dust collection filter cartridge |
| Shape | Round |
| Outside Diameter | 12.75" (324 mm) |
| Length | 26.00" (660 mm) |
| Inside Diameter | 8.38" (213 mm) |
| Top | Open |
| Bottom | Open |
| Approx. Filter Media Area | 222.6 sq ft (20.68 m²) |
