Prevent thermal risks with the replacement P034584-016-436 Dust Filter Cartridge for Automobile Factories. Triagonal & anti-static design. Request a quote!
Precision automotive assembly lines cannot tolerate unpredicted shutdowns caused by explosive welding fumes or paint mist. Engineered as a direct fit for OEM housings, the replacement P034584-016-436 Dust Filter Cartridge for Automobile Factories tackles dangerous electrostatic buildup head-on. With its distinct 3-sided structural flex and fire-resistant Ultra-Web matrix, this unit guarantees a secure, spark-free extraction process, empowering vehicle manufacturers to boost production throughput safely and sustainably.
Tri-Lobe Kinetic Cleaning: The unique triagonal (three-sided) architecture amplifies pneumatic pulse vibrations, cracking and shedding stubborn, oily robotic welding smoke much faster than standard round equivalents.
Integrated Spark Defense: Chemically engineered to be both electrically conductive and flame-proof, this component bleeds static directly into the earth, neutralizing ignition hazards in volatile production bays.
Ultra-Dense 364-Pleat Layout: Cramming an impressive 23.60 m² (254 sq.ft) of filtration surface into a 26-inch galvanized frame allows this unit to ingest massive particulate loads without starving your primary exhaust fans.
| Industrial Spec | Technical Parameters |
| Equivalent Part | Interchangeable with P034584-016-436 |
| Product Category | Dust Filter Cartridge for Automobile Factories |
| Outer Diameter | 349 mm (13.74 inch) |
| Inner Diameter | 237 mm (9.35 inch) |
| Overall Length | 660 mm (26.00 inch) |
| Active Surface Area | 23.60 m² (254 ft²) |
| Pleat Configuration | 364 Count / 51 mm (2.00 inch) Height |
| Shape / Profile | Triagonal |
| Filtration Media | Ultra-Web Anti-Static |
| End Cap Structure | Open / Open |
| Outer Liner | Galvanized Steel |
| Gasket Location | Above Top End Cap |
| Temp Threshold | 82 °C (180 °F) |
| Safety Ratings | Conductive, Anti-Static, Flame Retardant |

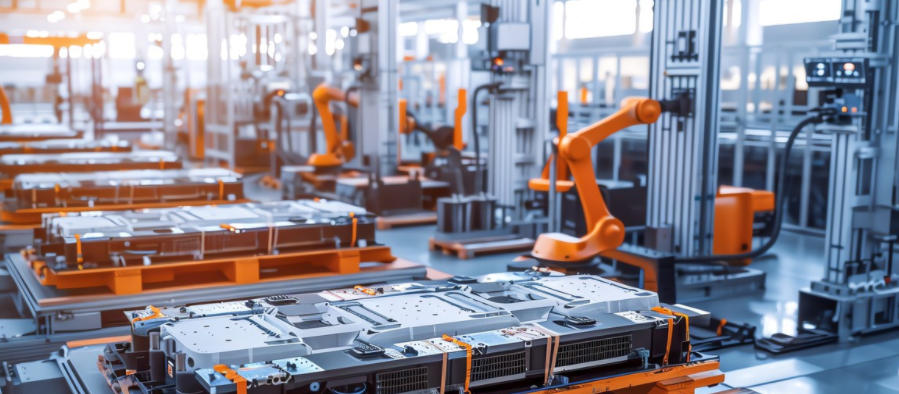

New Energy Facilities:
Secures EV battery gigafactories against thermal runaway by safely isolating highly conductive lithium-ion precursor dust and graphite powders.

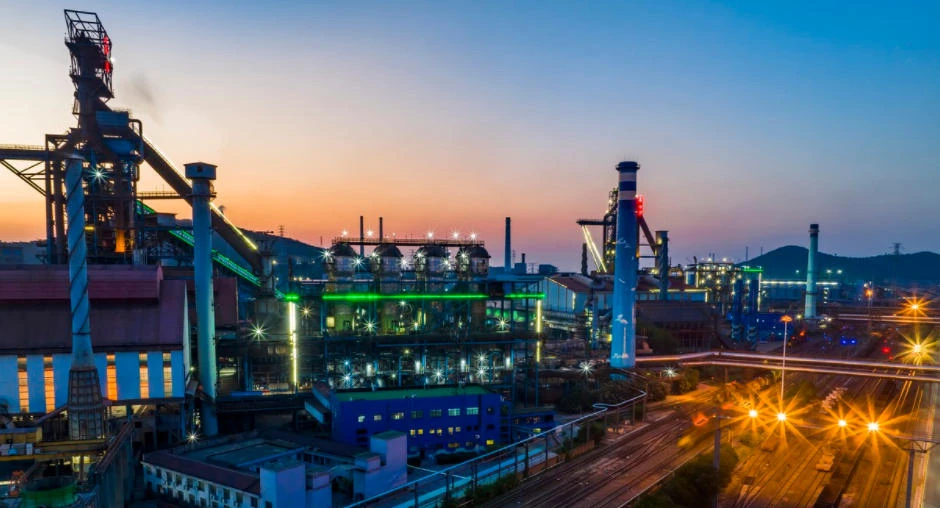

Steel Mills:
Purifies the air surrounding continuous casting and hot rolling lines where extreme heat and abrasive iron flakes typically destroy ordinary filter elements.

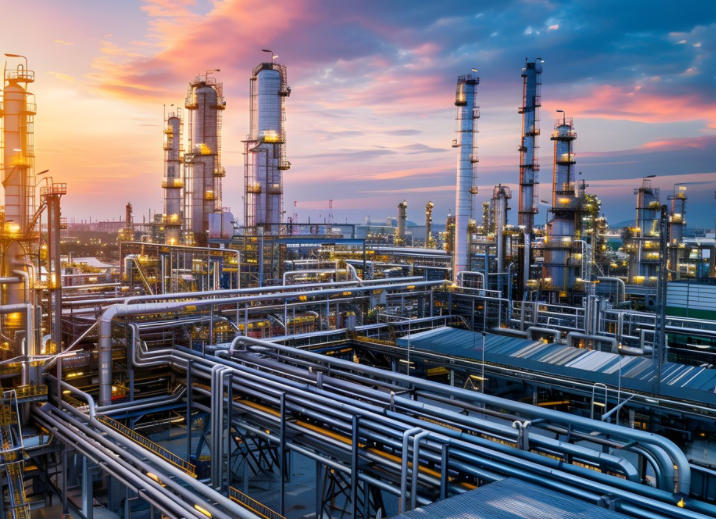

Chemical Processing:
Neutralizes the generation of triboelectric charges during the high-speed pneumatic conveying of explosive synthetic polymers and pigment resins.
HONOR
ISO 14001
ISO 9001
CE
SGS
Patent
Quality assurance at Ayater transcends basic manufacturing compliance. Prior to global distribution, every replacement Dust Filter Cartridge for Automobile Factories is subjected to severe conductivity and flame-spread evaluations within our certified QC laboratories. We stand behind our B2B products, ensuring your emission control networks meet strict NFPA and ATEX safety directives.
An electric vehicle OEM dealt with recurring hopper smoldering because robotic welding sparks routinely ignited conventional cellulose filters. By integrating the Ayater triagonal replacement cartridge, the conductive and fire-blocking media instantly absorbed and extinguished incoming hot debris. The carmaker recorded zero fire incidents over the subsequent two years and saw a 35% drop in pulse-valve compressed air consumption.
Why Triangular Filters Outperform Cylinders in Weld Fume Extraction
Standard round filter cartridges often fail in car manufacturing environments because sticky robotic welding smoke and powder coating overspray wedge deeply into the pleats. A rigid cylindrical shape simply does not flex easily when hit by compressed air. The "Triagonal" (triangle-shaped) profile fundamentally alters the mechanical physics of the purge cycle.
Its three flatter panels act similar to acoustic drum membranes. When the reverse air pulse fires, these flat sections snap outward with high kinetic energy, violently cracking and ejecting the baked-on dust crust. This unique flexing action keeps the massive 23.60 m² media surface genuinely clean, ensuring primary exhaust fans never have to overwork to maintain critical workshop suction.
Ayater Filtration stands as a premier manufacturing force in the international B2B air purification market. From sourcing high-grade fire-retardant substrates to operating robotic precision pleating lines, our factory floor is optimized for heavy industrial excellence. We are completely dedicated to providing global OEMs and aftermarket buyers with heavy-duty separation technology that safeguards both human lives and high-value capital machinery.
| P122605 | P122998 |
| P123785 | P124046 |
| P124551 | P124860 |
| P124867 | P125306 |
| P125744 | P126227 |
| P128126 | P128409 |
| P129081 | P129196 |
| P129337 | P130747 |
| P131231 | P131348 |
| P131404 | P131912 |
If you want specific information about other models, please contact us directly!
