Partner with trusted dust collector filter cartridge manufacturers for the P191037 replacement. 223 sq.ft media for heavy extraction. Request a B2B quote!
Sourcing reliable replacement components is crucial for continuous industrial facility maintenance. As dedicated dust collector filter cartridge manufacturers, Ayater engineers the interchangeable replacement for P191037 to deliver stable and highly efficient air extraction. Featuring a massive 223 square feet of filtration media and a precise 1.18" bolt-hole mounting base, this unit ensures rapid installation. It significantly lowers the air-to-cloth ratio, maximizing airflow stability for heavy-duty pneumatic systems without the supply chain delays of middlemen.

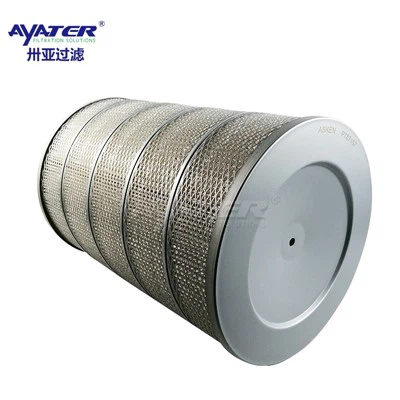

Precision Yoke-Mount Configuration: The bottom is securely closed and integrated with a 1.18" bolt hole, perfectly engineered for standard rod/yoke mounting mechanisms. This ensures a vibration-proof seal during aggressive pneumatic pulsing.
Massive 223 Sq Ft Media Area: Packed with an exceptionally high density of filter media, this cylindrical replacement easily absorbs sudden surges in heavy particulate loading, extending the operational lifecycle drastically.
Direct-from-Factory Reliability: By partnering directly with established dust collector filter cartridge manufacturers, facilities benefit from consistent quality control, scalable production volumes, and highly predictable B2B delivery schedules.
| Industrial Air Filtration Specs | Technical Parameter Details |
| Equivalent Part Number | Interchangeable Replacement for P191037 |
| Sourcing Category | dust collector filter cartridge manufacturers |
| Outer Diameter (OD) | 12.75" (approx. 323.8 mm) |
| Inner Diameter (ID) | 8.37" (approx. 212.6 mm) |
| Nominal Length | 26.00" (approx. 660.4 mm) |
| Filter Geometry | Round / Cylindrical |
| Top End Cap | Open |
| Bottom End Cap | Closed with 1.18" Bolt Hole |
| Approx. Media Area | 223 Square Feet (sq. ft.) |
| Intended B2B Application | Industrial Baghouse & Dust Extractors |
Coal Mines:
Installed in surface preparation plants and underground transfer networks to extract heavy, abrasive coal dust, keeping the atmospheric concentration well below hazardous limits.
Steel Mills:
Functions robustly in continuous casting and metal grinding bays, where the 223 sq ft media area easily handles dense, dry metallic particulate clouds.
Paper Making:
Extracts airborne cellulose debris from industrial pulping and cutting machinery, utilizing the bolt-hole mount to stay securely fastened against continuous vibration.
HONOR
ISO 14001
ISO 9001
CE
SGS
Patent
As recognized dust collector filter cartridge manufacturers, Ayater enforces rigorous accountability across our production lines. Every batch of the P191037 replacement is subjected to strict dimensional audits (verifying the exact 1.18" bolt hole clearance) and media permeability tests in our ISO-compliant facility. We empower industrial procurement teams with traceable, meticulously engineered components.
A large-scale coal preparation plant faced frequent downtime due to inconsistent filter quality from third-party distributors and loose fitments during pulse cleaning. By sourcing the P191037 replacement directly from Ayater-experienced dust collector filter cartridge manufacturers-they eliminated supply bottlenecks. The precise 1.18" bottom bolt hole ensured a rigid, leak-proof fit on their existing yokes. This direct-to-manufacturer upgrade reduced their consumable spending by 25% and secured a stable 223 sq ft filtration capacity that extended change-out cycles to over six months.
The Engineering of Yoke-Mounting & Air-to-Cloth (A/C) Ratios
In heavy industrial dust collection, the mechanical mounting style is as critical as the media itself. The P191037 profile utilizes a "Closed Bottom with a Bolt Hole" (often 1.18 inches). This indicates a Yoke or Rod-mounting system. A threaded rod passes through the entire length of the filter, and a nut secures the bottom pan. This mechanism provides immense axial rigidity, preventing the 26-inch long cartridge from vibrating loose or shifting when hit by 90+ PSI of compressed reverse air during the cleaning cycle.
Simultaneously, the engineering triumph of this specific cartridge is its 223 sq ft of media area packed into a 12.75" outer diameter. By drastically expanding the surface area, facility engineers effectively lower the "Air-to-Cloth Ratio" (the volume of air passing through a square foot of media per minute). A lower A/C ratio means the upward air velocity approaches the filter much gentler, preventing abrasive dust from deeply embedding into the substrate and allowing the pulse-jet to blast the dust cake away completely.

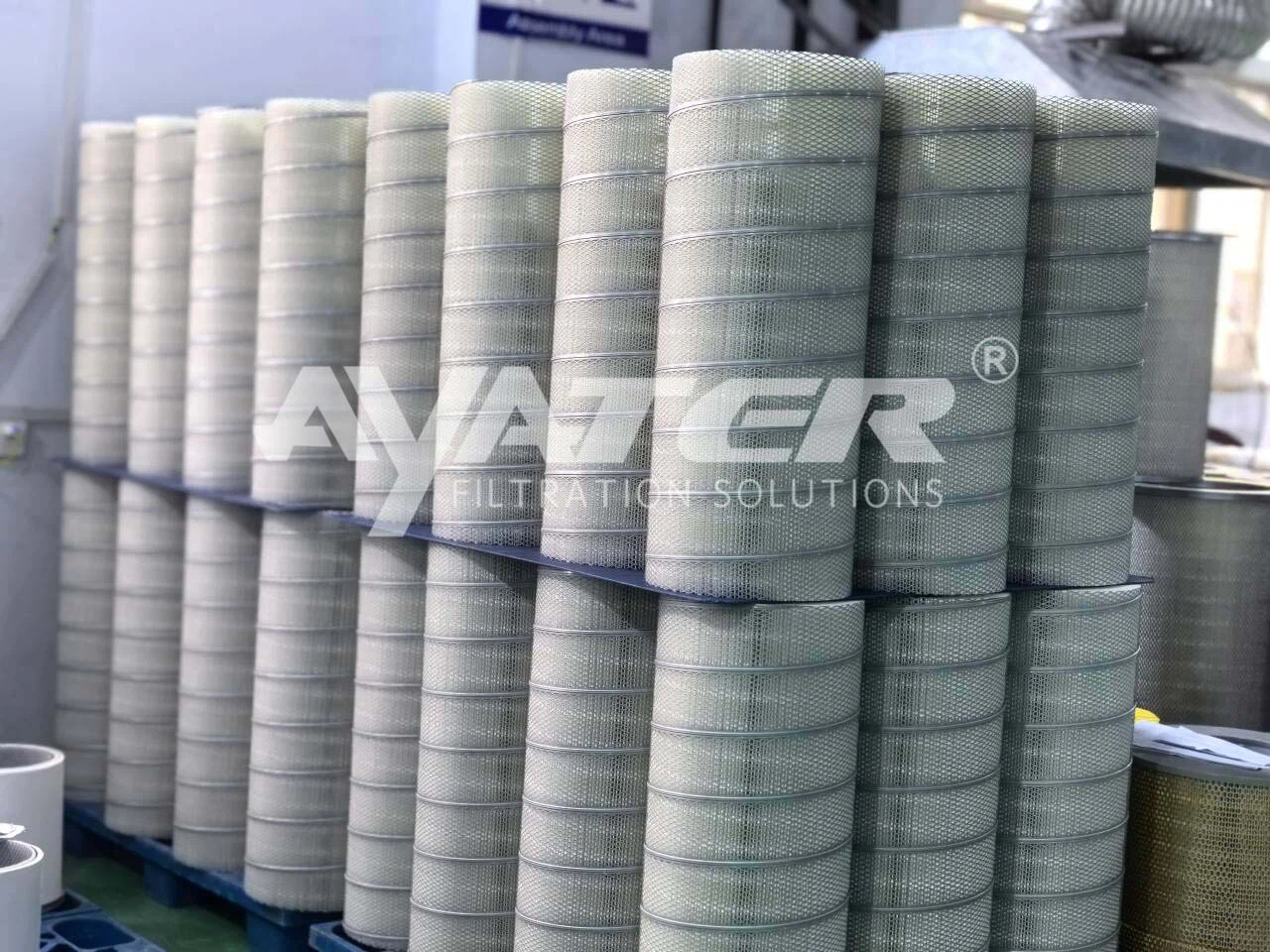

Ayater stands at the forefront of global air purification as premier dust collector filter cartridge manufacturers. Our modern production base is equipped with automated pleating lines, robotic dispensing for end-cap sealing, and comprehensive structural testing machinery. By bypassing intermediaries, we empower B2B industrial partners worldwide with direct access to heavy-duty, high-performance filtration technology that sustains operational compliance and productivity.
| P141320 | P142808 |
| P142810 | P142811 |
| P142812 | P142813 |
| P143515 | P145709 |
| P145891 | P146555 |
| P147320 | P148018 |
| P148646 | P188413 |
| P149554 | P150135 |
| P150464 | P151244 |
| P155248 | P156334 |
If you want specific information about other models, please contact us directly!
Hot Tags: p191037 dust collector filter cartridge manufacturers, China, manufacturers, suppliers, factory, customized
