SYCF-DS16-2# 304 stainless steel 16 bag multi-filter housing. 480 m³/h flow rate, CN300 connections, 304SS construction. Industrial multi-filter housing for high-flow chemical, water, and petrochemical applications. ISO 9001 certified.

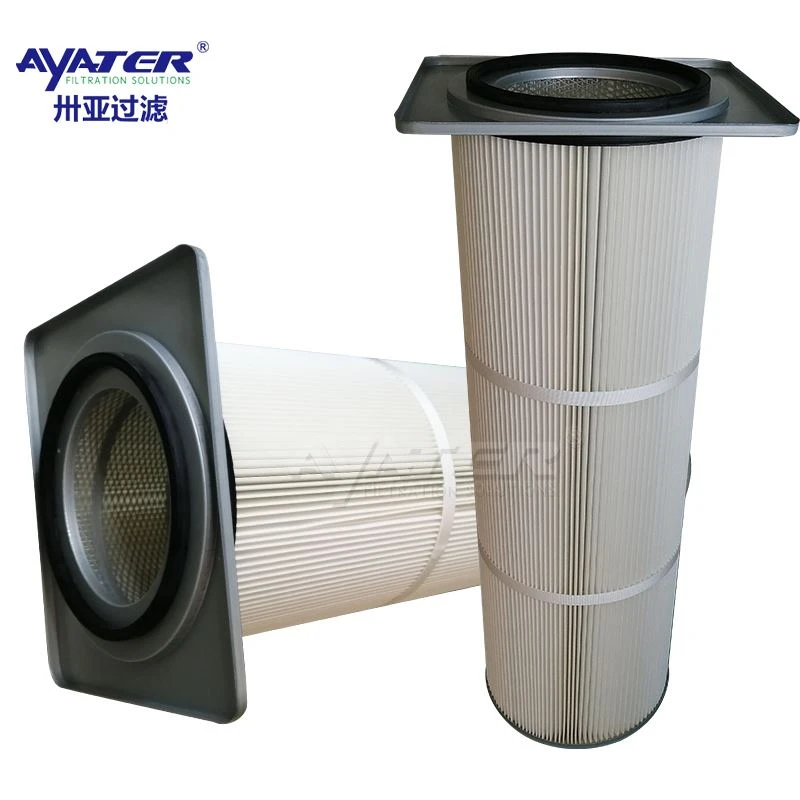

The replacement for P191525 flange-type dust filter cartridge delivers 308.27 sq. ft. of media area in a compact 12.75" OD × 36" length footprint. Engineered as a direct replacement for existing flange-mount systems, this round, open-top/closed-bottom cartridge optimizes dust holding capacity while maintaining low pressure drop across the filter element.
1. High-Efficiency Pleated Media Configuration
The 308.27 sq. ft. media area provides extended dust-holding capacity and service intervals. The pleated design increases effective filtration surface without expanding the cartridge footprint, making it ideal for confined equipment spaces where frequent changeouts are impractical.
2. Flange-Mount Compatibility
The flange-type configuration ensures positive sealing and straightforward installation in existing dust collector housings. This design minimizes bypass leakage and maintains system integrity during pulse-jet cleaning cycles.
| Parameter | Specification |
|---|---|
| Part Number | Replacement for P191525 |
| Product Type | Flange-type Dust Filter Cartridge |
| Outside Diameter (OD) | 12.75" (324 mm) |
| Length | 36" (914 mm) |
| Inside Diameter (ID) | 8.375" (213 mm) |
| Shape | Round |
| Top Configuration | Open |
| Bottom Configuration | Closed |
| Filter Media Area | 308.27 sq. ft. (28.64 m²) |

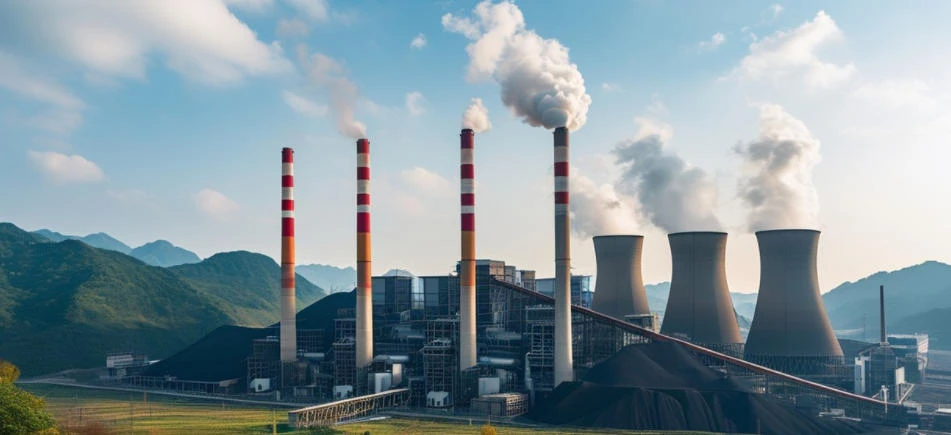

Power Generation
Coal-fired power plants and biomass facilities generate significant fly ash and combustion byproducts. This flange-type filter cartridge provides reliable particulate control in coal handling and ash processing areas, supporting compliance with emission regulations.

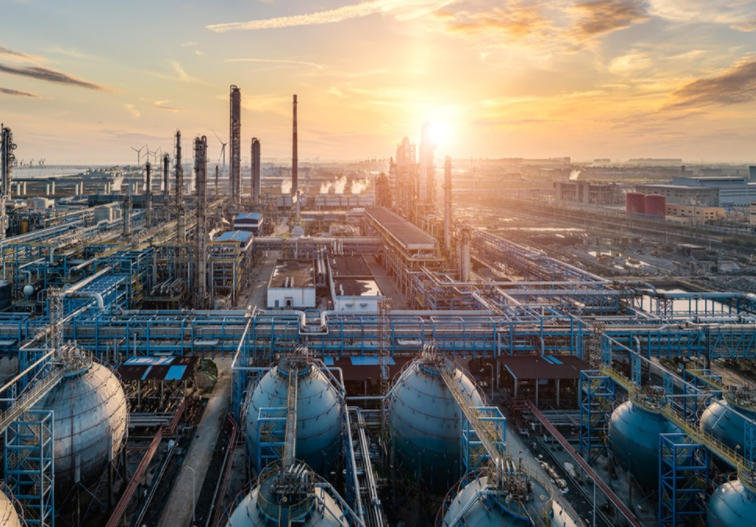

Chemical Processing
Chemical manufacturing operations often involve fine powders and reactive dusts requiring containment. The P191525 cartridge, available with PTFE membrane or anti-static media, provides effective filtration for powder handling, mixing, and packaging applications.
Certificate name
Certificate name
Certificate name
Certificate name
Case Study: Midwest U.S. Steel Fabrication Facility – A structural steel fabrication plant with multiple plasma cutting stations experienced filter changeouts every 6–8 weeks due to high metallic dust loading, incurring $18,000 annual maintenance costs and 4 hours of downtime per changeout. After switching to the replacement P191525 flange-type dust filter cartridge (interchangeable with the existing flange-mount units) featuring 308.27 sq. ft. media area and oil/water repellent treatment, the facility extended service intervals to 12–14 weeks. Over 12 months, this replacement P191525 cartridge delivered a 40% longer service life, reduced annual maintenance costs by approximately $7,200, and cut scheduled downtime for filter changes by 50%, while maintaining consistent OSHA-compliant air quality.
Understanding Pleated Cartridge Filtration in Pulse-Jet Systems – The replacement for P191525 flange-type dust filter cartridge operates in pulse-jet systems where compressed air pulses dislodge accumulated dust from the media surface. Its 308.27 sq. ft. media area reduces face velocity at a given airflow, extending cleaning intervals and lowering compressed air consumption. The flange-type top maintains seal integrity under repeated pulsing cycles. When replacing cartridges, verifying dimensional specifications (12.75" OD × 36" length) and operating temperature is essential. For hygroscopic, explosive, or sticky dusts, media upgrades such as PTFE membrane or anti-static treatments are recommended to maintain cleaning efficiency and prolong service life.
