Secure your abatement unit with the P199401 replacement dust collector air filter cartridge. 16.63" flanged design & 223 sq.ft media. Get a B2B quote!
Restricted ceiling heights in industrial particulate abatement units require short yet expansive filtration components. The interchangeable replacement for the P199401 Dust Collector Air Filter Cartridge solves spatial limitations by integrating 223.38 sq.ft of premium substrate into a compact 20-inch vertical profile. Engineered with a specialized flanged top collar and a solid closed base, this heavy-duty element guarantees a leak-proof structural fit. It empowers facility managers to handle aggressive dust loads without expanding the equipment footprint.
Flanged Suspension Architecture: The integrated top flange allows the replacement industrial Dust Collector Air Filter Cartridge to rest securely on the tube sheet. This leverages the exhaust fan's vacuum to create an airtight, self-compressing seal without complex hardware.
Squat High-Girth Matrix: Expanding the outside diameter to 16.63 inches accommodates a massive pleat volume in only a 20-inch length. This radically lowers the approach velocity of dirty air, preventing abrasive particles from slicing the fabric.
Closed-Base Kinetic Shield: Designed with a solid metal bottom pan. Upward-traveling turbulent dust blasts against this metal base rather than the fragile pleats, physically extending the service life of the cartridge in harsh environments.
| Component Form Factor | Verified Engineering Metric |
| Substitute Identification | Interchangeable Replacement for P199401 |
| SEO Product Nomenclature | Dust Collector Air Filter Cartridge |
| Top Fixture Interface | Open with Flange |
| Bottom Boundary | Solid Closed Pan |
| Maximum Outer Boundary | 16.63 Inches (approx. 422.4 mm) |
| Internal Exhaust Void | 10.60 Inches (approx. 269.2 mm) |
| Overall Vertical Axis | 20.00 Inches (approx. 508.0 mm) |
| Spatial Dimensions | 16.63 x 20.00 x 10.60 Inches |
| Shape Profile | Round / Cylindrical |
| Active Substrate Area | Approx. 223.38 Square Feet |
Metallurgy Facilities:
Installed in low-clearance foundry exhaust hoods, reliably extracting dense metallic fumes and silica sand without requiring tall, obstructive collector housings.

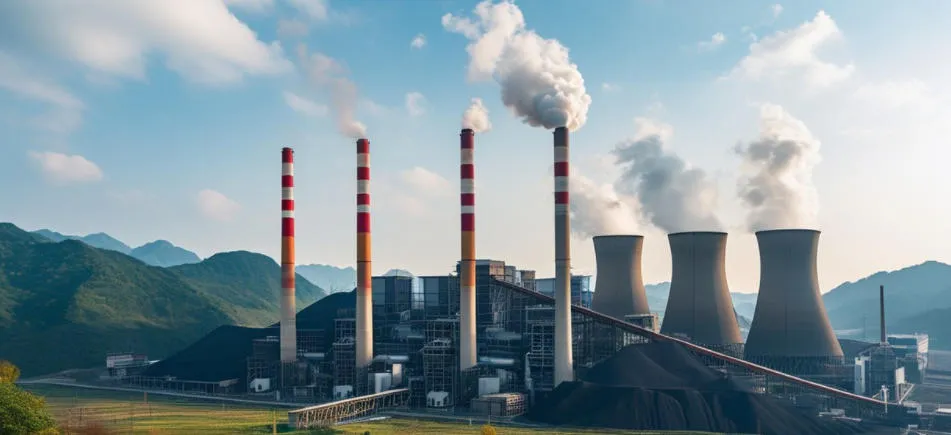

Power Plants:
Manages aggressive fly ash near boiler conveyor systems. The robust closed bottom deflects high-speed abrasive ash surges, ensuring continuous base-load energy operations.
Shipbuilding & Marine Repair:
Operates in mobile blasting extraction skids inside ship hulls. The compact 20-inch profile is perfectly suited for portable filtration units navigating confined maritime spaces.
HONOR
ISO 14001
ISO 9001
CE
SGS
Patent
Ayater validates all B2B separation hardware through uncompromising quality regimens. Before international transit, the flanged collar of this replacement Dust Collector Air Filter Cartridge undergoes precise CNC flatness evaluation, while the 223.38 sq.ft media matrix is tested for pleat integrity under ISO-compliant procedures. We equip global procurement teams with structurally infallible, factory-direct environmental assets.
A busy metal casting foundry faced a critical ventilation bottleneck. Their melting zone had a severely restricted ceiling height, making standard 26-inch or 30-inch filters impossible to install. Using undersized filters caused immediate blinding. By consulting Ayater, they transitioned to the P199401 equivalent. This unique 20-inch "squat" cartridge fit perfectly into their low-profile housing. Because it utilized an expanded 16.63-inch outer diameter to house 223 sq.ft of media, they sacrificed zero filtration capacity. The plant eliminated extraction choking and stabilized their differential pressure throughout intense continuous casting shifts.
Flanged Sealing Dynamics and Baffle Defense
In highly abrasive environments, how a filter seals and handles incoming airflow dictates its lifespan. A standard open-bottom filter installed via internal yokes often suffers from "updraft scouring." Dirty air rushing up from the hopper gets inside the filter, blasting the media from the interior.
This engineered Dust Collector Air Filter Cartridge implements a "Closed Bottom" to act as an integrated baffle. The upward-rushing particulate hits the solid steel pan and is forced to disperse horizontally, protecting the fragile pleated fabric from direct sandblasting. Simultaneously, the top "Flanged" design transforms installation sealing. Suspended from the clean-air tube sheet, the negative vacuum pressure created by the exhaust fan physically sucks the 16.63" flange downward. This compresses the integrated gasket firmly against the metal plate. The result is a self-energizing, leak-proof barrier that intensifies its grip as suction increases, assuring maximum occupational safety.
Grounded in fluid mechanics and structural metal forming, Ayater directs digitized production corridors dedicated exclusively to B2B industrial separation. By integrating automated pleat-packing machines with heavy-duty flange stamping, we forge highly dependable environmental control components. Our core mission is to eradicate supply-chain bottlenecks, equipping global heavy industries directly with the robust extraction technologies necessary to maintain safe, compliant, and continuously productive operations.
| P191469 | P191479 |
| P191496 | P191521 |
| P191522 | P191523 |
| P191524 | P191525 |
| P191526 | P191527 |
| 8PP-47936-00 | 8PP-48001-00 |
| 8PP-47405-00 | 8PP-47730-00 |
| 8PP-47402-00 | 8PP-47404-00 |
| 8PP-46930-00 | 8PP-47400-00 |
| 8PP-46638-00 | 8PP-46774-00 |
If you want specific information about other models, please contact us directly!
