Secure your corrosive extraction systems with replacement P522843-016-340 dust cartridge filters. Stainless steel & bolt-hole mount. Request a B2B quote!

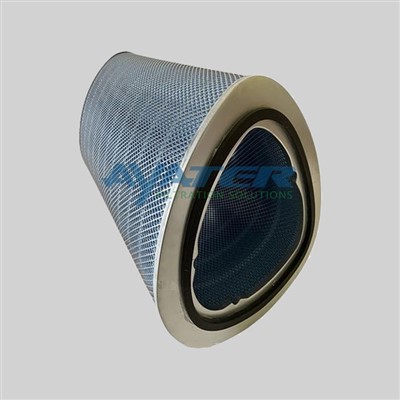

Corrosive vapors and aggressive chemical powders can rapidly degrade standard galvanized extraction components. Engineered as a seamless replacement for the P522843-016-340, these heavy-duty dust cartridge filters are constructed entirely with stainless steel hardware to conquer acidic and alkaline processing environments. Featuring a secure bolt-hole mounting system and compact 16-inch profile, this unit provides unyielding structural stability and superior particulate containment, helping industrial facility managers minimize corrosion-related downtime effectively.
Stainless Steel Anti-Corrosion Matrix: The inner core, outer liner, and end caps are manufactured from industrial-grade stainless steel. This protects the dust cartridge filters against rapid oxidation when handling moisture-laden or chemically reactive powders.
Vibration-Proof Bolt-Hole Anchoring: The "Closed with Bolt Hole" bottom cap allows the cartridge to be securely bolted directly onto the collector's mounting yoke, preventing mechanical dislodgement during intense pneumatic pulsing.
Compact Ultra-Web Efficiency: Despite a short 406 mm (16-inch) length, the 51 mm deep pleats integrate 5.57 m² (59.95 sq.ft) of Ultra-Web media, ensuring excellent surface-loading particulate capture in space-restricted commercial baghouses.
| Industrial Sourcing Parameter | Specification Details |
| Equivalent Model | Interchangeable Replacement for P522843-016-340 |
| Component Category | dust cartridge filters |
| Outer Diameter (OD) | 201 mm (7.93 inch) |
| Inner Diameter (ID) | 91 mm (3.57 inch) |
| Nominal Length | 406 mm (16.00 inch) |
| Hardware Construction | Stainless Steel (Inner/Outer Liner) |
| Top End Cap | Open |
| Bottom End Cap | Closed with Bolt Hole |
| Media Type | Ultra-Web (Surface Loading |
| Filter Area & Pleat Height | 5.57 m² (59.95 ft²) / 51 mm (2.00 inch) |
| Temperature Limit | 82 °C (180 °F) |
| Safety Features | Standard Non-FR / Non-AS |
Chemical Processing:
Highly reliable for extracting airborne active pharmaceutical ingredients (APIs) and reactive additives, where stainless steel prevents chemical degradation of the filter casing.
Petroleum Refining:
Manages abrasive and slightly acidic catalyst dust generated during petrochemical material handling, eliminating the rust issues prevalent with standard galvanized components.
Water Treatment Facilities:
Filters highly corrosive airborne powders, such as chlorine or lime dust, during dry chemical dosing operations, ensuring safe and uncontaminated utility zones.
HONOR
ISO 14001
ISO 9001
CE
SGS
Patent
Ayater imposes rigorous material science protocols on all replacement dust cartridge filters. Before global distribution, the P522843-016-340 interchangeable unit undergoes comprehensive metallurgical analysis of the stainless steel components and tensile strength testing of the bolt-hole base. Adhering strictly to ISO manufacturing frameworks, we provide B2B clients with extraction assets engineered for absolute mechanical dependability.
A specialized petrochemical facility suffered recurring baghouse failures in their catalyst recovery unit. The residual acidic vapor in the airstream was rapidly rusting their galvanized filters, causing the metal liners to snap and the media to collapse. By upgrading their system with Ayater's stainless steel replacement dust cartridge filters, the chemical oxidation issue was entirely resolved. The rigid bolt-hole installation secured the filters against intense pneumatic blasts, extending the consumable replacement interval by 60% and drastically reducing maintenance expenditure.
The Engineering of Bolt-Hole Mounting and Stainless Steel in Corrosive Dust Collection
When selecting industrial air filtration for chemically aggressive environments, standard galvanized steel is a primary point of failure. The zinc coating is easily stripped by acidic fumes or alkaline dust, exposing raw steel to rapid corrosion. The implementation of 300-series stainless steel in both the inner and outer liners provides an inert, highly robust scaffold that remains unaffected by chemical moisture.
Equally critical is the "Closed with Bolt Hole" mechanical design. In heavy processing, extraction filters are subjected to violent reverse-air pulses (often exceeding 90 PSI) every few minutes. A standard push-in or twist-lock filter can slowly vibrate loose under these shockwaves, breaking the gasket seal. By utilizing a solid metal bottom cap engineered with a central bolt hole, a threaded rod locks the cartridge directly to the collector's yoke. This physical anchoring creates a zero-movement, leak-proof seal, ensuring that highly toxic or corrosive particulates never bypass the extraction barrier.
Anchored by deep metallurgical and filtration expertise, Ayater manages modern manufacturing facilities exclusively geared towards B2B industrial air and fluid separation. We leverage advanced stainless-steel welding technology, automated pleating, and rigorous dimensional inspection to deliver heavy-duty consumables. Our fundamental mission is to supply global processing enterprises with the resilient extraction infrastructure needed to maintain safe, contaminant-free, and compliant operations.
| P191525 | P191526 |
| P191527 | P191528 |
| P191529 | P191531 |
| P191536 | P191544 |
| P191548 | P191549 |
| P191550 | P191551 |
| P191558 | P191561 |
| P191562 | P191563 |
| P191581 | P191619 |
| P191564 | P191625 |
If you want specific information about other models, please contact us directly!
