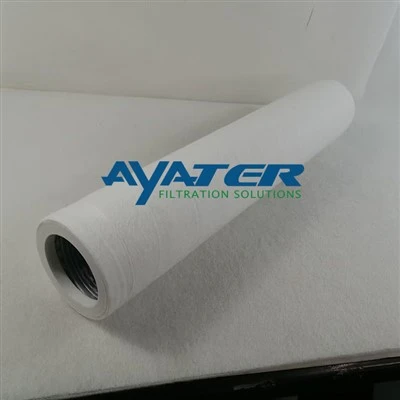

Products Description The NGGC-336 Gas Coalescing Cartridge eliminates aerosol mists and liquid droplets as small as 0.3μm from natural gas and process streams with industry-leading efficiency. Engineered with depth-loading media, it ensures sustained high flow and minimal pressure drop. This...
The NGGC-336 Gas Coalescing Cartridge eliminates aerosol mists and liquid droplets as small as 0.3μm from natural gas and process streams with industry-leading efficiency. Engineered with depth-loading media, it ensures sustained high flow and minimal pressure drop. This coalescing cartridge delivers dry, contaminant-free gas for critical operations.
 |
 |
 |
 |
| Product Series | NGGC |
| Product Model | 336 |
| Length | 36 inches |
| Outer Diameter | 4.4 inches |
| Inner Diameter | 3 inches |
| Micron Rating | 0.3 microns (standard) |
| Filter Medium | Polypropylene or Polyester |
| Center Tube | Metal |
| Top Cap | 304 Stainless Steel |
| Bottom Cap | Synthetic Material |
| Flow Direction | Inside to Outside |
| Maximum Temperature | 82°C (Polypropylene), 116°C (Polyester) |
| Maximum Differential Pressure | 25 psid |
| Recommended Replacement Differential Pressure | 12–14 psi |
✅ Saturated Depth Coalescing Technology
→ Removes sub-micron aerosols more effectively than pleated designs.
✅ Polypropylene or Polyester Media
→ Thermally bonded multilayer structure maximizes contaminant holding capacity.
✅ High-Drainage Efficiency
→ Minimizes re-entrainment for consistent gas purity.
✅ Rigorous Quality Validation
→ Meets ISO 9001 standards for reliable performance.
Industries:
Removes aerosolized:
▶ Free water & condensate
▶ Glycol
▶ Amine solutions
▶ Lubricating oils
▶ Low surface tension fluids (e.g., solvents)
| NGGC-336-PL-01 | NGGC-336-PL-20 | NGGC-336-PL-23 |
| NGGC-312-PL-01 | NGGC-312-PL-20 | NGGC-312-PL-23 |
| NGGC-324-PL-01 | NGGC-324-PL-20 | NGGC-324-PL-23 |
 |
 |
 |
 |
