Eaton Internormen Filter 306607

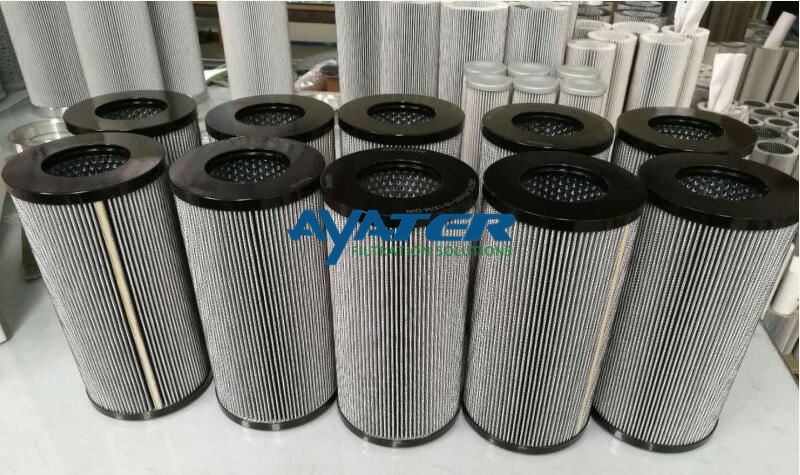

Ayater Hydraulic Filter In Production

Ayater Hydraulic Filter Feature & Benifit

The filter elements have the characteristic on high pressure collapse resistance, high liquidity, high filtration efficiency. They are widely used in hydraulic and lubricant system to keep the systems operate regularly.

Filter Medium: glass fiber, filter paper, stainless steel sinter fiber and stainless wire mesh.

Superior quality, reasonable prices and large capacity .

Ayater Hydraulic Filter Applications:

This filter element may be used for filtering:

Hydraulic Fluid and Machining Fluids, Water Glycols and Coolants

Diesel, Gasoline and other fuels, Lubricating Oils, Synthetic Lubricants, and Process Fluids

Turbine and Compressor Lube Oils … And many more fluids

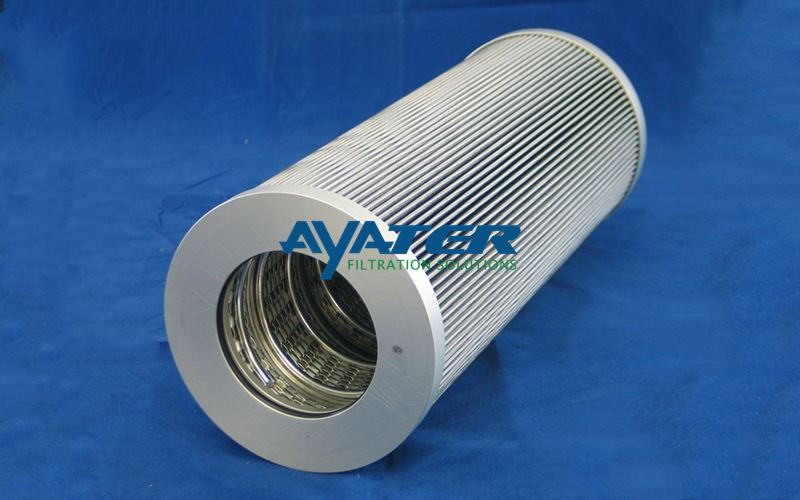

Eaton Internormen Oil Filter 306607

Internormen Filter 306607 Specification

Overall Height: 15.71

Media: Microglass

Od Top: 6.06

Od Bottom: 6.06

Collapse Pressure: 145

Operating Temperature: -13 To 250f

Flow Direction: Outside-In

Seal Material: Viton

Beta Ratio: 200/13

Micron Rating: 10

Packing Details:

PP bag inside, Inner carton, Export carton outside, or Wooden box as your requirement
