Internormen 01.NL filter element Introduction Nominal sizes: 40 – 1000 (435 psi/30 bar and high resistance) 01.NL in-line lubrication filter elements meet DIN 24550-3 standards and are ideal for use in pressure filters to protect system components. Ayater filter elements Applications •...

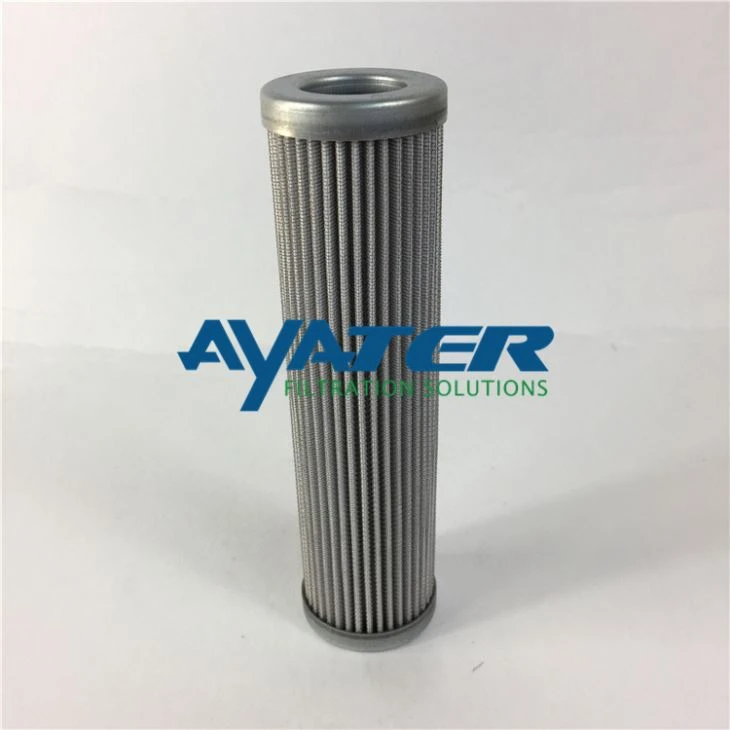

Internormen 01.NL250.25G.30.E.P filter element Introduction
Nominal sizes: 40 – 1000 (435 psi/30 bar and high resistance)
01.NL in-line lubrication filter elements meet DIN 24550-3 standards and are ideal for use in pressure filters to protect system components.
Internormen 01.NL250.25G.30.E.P Filter element material
Stainless steel wire mesh (G)
Single or multilayer, pleated construction made with stainless steel wire mesh in different weaves, depending on retention ratings.
Features:
• Removes particulate from heavily contaminated fluids
• Protects pumps with a minimal pressure drop decreasing the risk of cavitation
• Compatible with a wide range of fluid types
Internormen 01.nl250.25g.30.e.p Specification
|
OEM Part Number |
01.NL250.25G.30.E.P |
|
Efficiency |
25 Micron |
|
Collapse Rating |
450 |
|
Max Temp (F) |
225 |
|
Adhesive |
Epoxy |
|
By-Pass |
None |
|
End Cap |
Plated CS |
|
Flow Direction |
Out/In |
|
Media Type |
N/A |
|
Outer Body |
N/A |
|
Recommended Change Out (psid) |
25 |
|
O.D. |
3.1 |
|
Length |
9.84 |
|
Seal Material & Type |
Buna O-Ring |
|
Quantity per Carton |
1 |
|
Weight per Filter (lbs) |
2.0000 |
Internormen 01.NL/Eaton Part Number and Type Code Cross Reference Table
|
Filter Elements 01.NL |
||
|
303061 |
300552 |
01.NL100.40G.30.E.P.- |
|
303064 |
300553 |
01.NL100.80G..30.E.P.- |
|
303062 |
300555 |
01.NL100.130G.30.E.P.- |
|
300070 |
306417 |
01.NL160.10VG.30.E.P.- |
|
300064 |
300998 |
01.NL160.10VG.HR.E.P.- |
|
300065 |
301845 |
01.NL160.16VG.30.E.P.- |
|
303063 |
300993 |
01.NL160.16VG.HR.E.P.- |
|
305710 |
300556 |
01.NL160.25VG.30.E.P.- |
|
300067 |
300996 |
01.NL250.3VG.30.E.P.- |
|
300068 |
300557 |
01.NL250.6VG.30.E.P.- |
|
300596 |
300558 |
01.NL250.10VG.30.E.P.- |
|
311829 |
306419 |
01.NL250.16VG.30.E.P.- |
|
300069 |
306420 |
01.NL250.25VG.30.E.P.- |
|
300597 |
301001 |
01.NL250.25G.30.E.P.- |
|
310991 |
301002 |
01.NL250.40G.30.E.P.- |
|
313658 |
300560 |
01.NL250.80G.30.E.P.- |
|
324139 |
300561 |
01.NL250.130G.30.E.P.- |
|
318778 |
300562 |
01.NL400.3VG.30.E.P.- |
|
300072 |
301006 |
01.NL400.3VG.HR.E.P.- |
|
302185 |
317483 |
01.NL400.6VG.30.E.P.- |
|
300084 |
317484 |
01.NL400.6VG.HR.E.P.- |
|
300073 |
314218 |
01.NL400.10VG.30.E.P.- |
|
300074 |
312792 |
01.NL400.10VG.HR.E.P.- |
|
300612 |
317487 |
01.NL400.16VG.30.E.P.- |
|
303099 |
316886 |
01.NL400.16VG.HR.E.P.- |
|
300077 |
313167 |
01.NL400.25VG.30.E.P.- |
|
300078 |
312504 |
01.NL400.25VG.HR.E.P.- |
|
301823 |
314485 |
01.NL400.25G.30.E.P.- |
|
300080 |
314486 |
01.NL400.25G.HR.E.P |
|
301994 |
314220 |
01.NL400.40G.30.E.P.- |
|
300082 |
314449 |
01.NL400.80G.30.E.P.- |
|
301917 |
314491 |
01.NL400.130G.30.E.P.- |
|
300609 |
314492 |
01.NL630.3VG.30.E.P.- |
|
320136 |
314191 |
01.NL630.6VG.30.E.P.- |
|
304941 |
314454 |
01.NL630.10VG.30.E.P.- |
|
304114 |
317489 |
01.NL630.16VG.30.E.P.- |
|
300103 |
314817 |
01.NL630.25VG.30.E.P.- |
|
303108 |
314870 |
01.NL630.25G.30.E.P.- |
|
300117 |
317492 |
01.NL630.40G.30.E.P.- |
|
300104 |
304533 |
01.NL630.80G.30.E.P.- |
|
300106 |
304534 |
01.NL630.130G.30.E.P.- |
|
300631 |
304535 |
01.NL1000.3VG.30.E.P.- |
|
300118 |
305036 |
01.NL1000.6VG.30.E.P.- |
|
300108 |
306604 |
01.NL1000.10VG.30.E.P. |
|
300110 |
305449 |
01.NL1000.16VG.30.E.P. |
|
304488 |
306605 |
01.NL1000.25VG.30.E.P. |
|
300111 |
306606 |
01.NL1000.25G.30.E.P.- |
|
300114 |
312621 |
01.NL1000.40G.30.E.P.- |
|
300115 |
313873 |
01.NL1000.80G.30.E.P.- |
|
300627 |
312623 |
01.NL1000.130G.30.E.P. |
