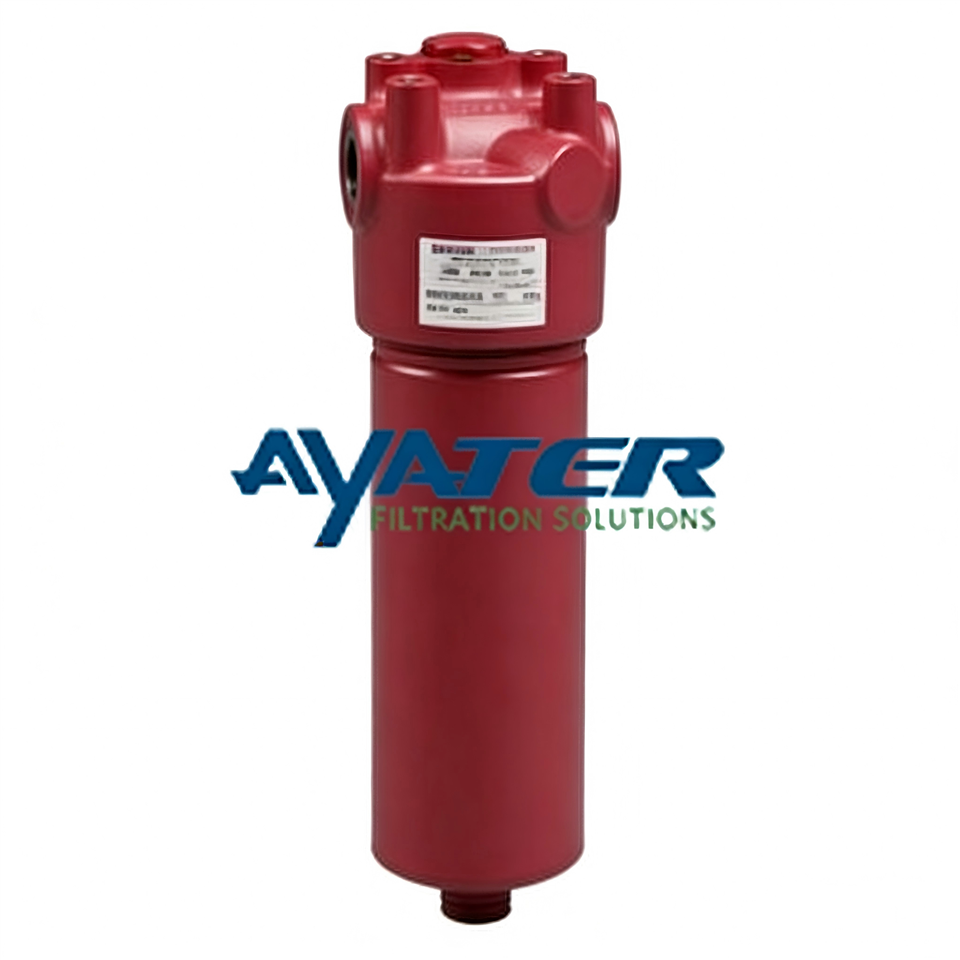

Ayater MFM Series In-Line Mobile Filter

Upgrading aging machinery to meet modern operational standards shouldn't require complex engineering overhauls. The Ayater MFM Series in-line mobile filter serves as a highly cost-effective replacement for outdated filters already specified on existing equipment. Featuring standardized threaded ports (from M18x1.5 to G¾), these units thread effortlessly into your current hydraulic architecture. This seamless retrofitting capability empowers maintenance teams to rapidly enhance the fluid conditioning performance of tractors, cranes, and municipal vehicles without incurring costly downtime or requiring custom adapter fittings.

To maximize the return on investment for machinery upgrades, we recommend a holistic filtration approach. The installation of a low-pressure duplex MFD filter is highly favored for return lines due to its quick spin-on element changeouts and aluminum head construction. However, pairing an MFD filter with the extreme high-pressure resilience of the MFM Series creates the ultimate closed-loop protection system. While the MFD filter traps returning environmental dust (handling up to 250 PSI), the Ayater MFM Series ensures the fluid driving your hydrostatic motors remains continuously pristine under 4060 PSI of force.

One of the most destructive events for a hydraulic filter element is the immense differential pressure generated during a cold startup. Thick, viscous oil forcefully pushes against the filter media, threatening structural failure. The Ayater MFM Series completely neutralizes this threat through its high-performance bypass valve design. With a high bypass cracking pressure of 7 bar, it guarantees that the filter media remains intact during extreme viscosity surges, only opening momentarily to prevent system cavitation before swiftly returning to full-flow filtration as the oil warms.

Quality assurance is guaranteed through rigorous adherence to international standards. The Ayater filter elements are validated through continuous monitoring under ISO 2941 (collapse/burst resistance), ISO 2942 (fabrication integrity), and ISO 3724 (flow fatigue characteristics). Built robustly with a ductile iron head (EN-GJS 400-15) and NBR seals, the MFM series safely processes highly demanding hydrocarbon-based fluids, synthetic oils, and oil/water emulsions while maintaining absolute zero leakage.
