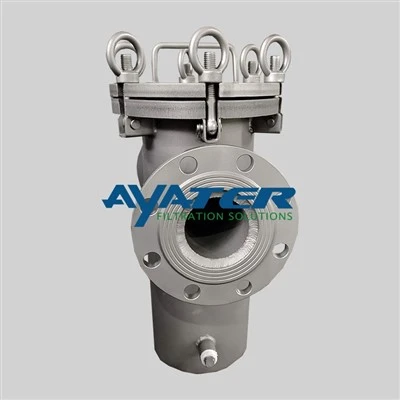

The purpose of a fabricated basket strainer is to remove particulate contaminants and impurities from liquids. It works on the following principle: the liquid enters the inside of the filter from the inlet, flows through the strainer basket, the particulate contaminants are trapped, and the clean liquid leaves the filter through the outlet.
Fabricated basket strainers are available in different sizes and configurations to meet a variety of industrial filtration needs. Users can customize options such as material, size, connection type, and surface treatment to meet specific project requirements.
|
Housing material |
Carbon steel, 304 stainless steel, 316 stainless steel, or specified materials |
|
Micron rating |
10-5000 micron |
|
Nominal diameter |
DN15-400mm(1/2"-16"), or customized upon request |
|
Surface treatment |
Anti-corrosion paint (carbon steel), acid dipping or anti-corrosion paint (stainless steel) |
|
Connection type |
Flange, female thread, male thread, quick opening clamp |
|
Cover type |
Swing bolts, flanges, etc |
|
Operating pressure |
0.6-1.6 MPa |
|
Operating temperature |
30°C~350°C (carbon steel), -80°C~480°C (stainless steel) |
1. It has a high filtration efficiency and is able to remove particles as small as a few microns.
2. Equipped with a removable filter basket for easy cleaning and replacement.
3. Easy to install and operate, it can be installed vertically or horizontally and is compatible with new or existing piping systems.
4. A wide range of applications include oil and gas, offshore, power generation, and water treatment industries.
5. Customization options for flexible design and operation.
