Products Description The lean amine carbon filter is a specialized adsorbent cartridge designed to remove trace contaminants-such as sulfur compounds, heavy metals, and organic impurities-from lean amine streams in gas-treating plants. By polishing the amine solution before it enters the...

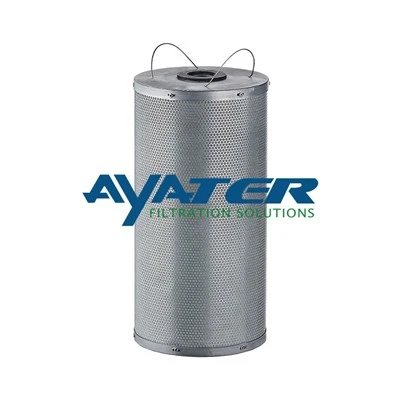

The lean amine carbon filter is a specialized adsorbent cartridge designed to remove trace contaminants-such as sulfur compounds, heavy metals, and organic impurities-from lean amine streams in gas-treating plants. By polishing the amine solution before it enters the regenerator, it helps maintain solvent quality, prolong equipment life, and ensure consistent removal of acid gases.
1. Adsorption Mechanics
The activated carbon in our filter relies on a network of micro- and mesopores that create an immense internal surface area. As lean amine flows through the bed, contaminants such as H₂S, CO₂ degradation by-products (carbonyls), and trace organics diffuse into these pores and adhere to the carbon surface via van der Waals forces and pore‐fill interactions.
2. Selective Uptake
By tailoring pore size distribution and surface chemistry, our proprietary coconut-shell carbon preferentially captures polar sulfur species and low-molecular-weight organics while allowing clean amine molecules to pass through with minimal retention.
| Product Name | Lean Amine Carbon Filter |
| Carbon Type | Proprietary coconut‐shell blend |
| Particle Size (mesh) | 6 – 12 mesh |
| Operating Temperature | 120 °C |
| Maximum Bed Depth | 48 in. |
| Recommended Flow Rate | 1.0 – 5.0 gpm/ft² |
| Typical Pressure Drop (fresh bed) | 2 – 4 psid at 1 gpm/ft² |
✅ High Surface Area Activated Carbon: Engineered pore structure tailored for amine‐soluble contaminants.
✅ Uniform Particle Size Distribution: Consistent flow rates and minimal pressure drop across the bed.
✅ Broad Chemical Resistance: Stable in temperatures up to 120 °C and compatible with common alkanolamines (MEA, DEA, MDEA).
✅ Modular Cartridge Design: Fits standard housings for quick retrofit and scalable capacity.
🛢️ Natural Gas Sweetening: Prior to amine regeneration to protect reboilers and condensers.
🏭 Refinery Sour Gas Treating: Polishing lean amine loops in hydrocracker and FCC units.
⚗️ Chemical Process Streams: Removal of trace organics before recycle or disposal.
🌍 CO₂ Capture Pilots: Ensuring high‐purity solvent for bench-scale testing.
XinXiang Saya Filters Co.,Ltd
Expert Support
24/7 technical assistance from amine system specialists.
Custom Solutions
Tailored sizes, materials, and flow rates to match unique system demands.
Proven Performance
Tested in 1000+ installations globally, with 40% longer lifespan vs. competitors.
