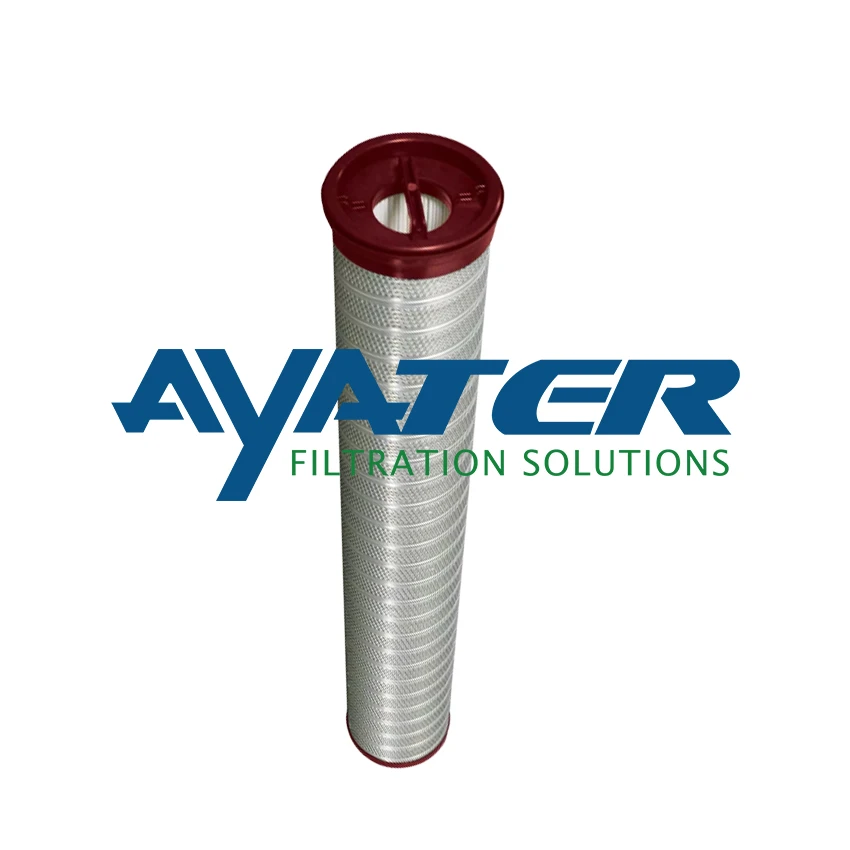

Liquid Filter Cartridge XP-G1-6100V

The Liquid Filter Cartridge XP-G1-6100V is a large filter element with a diameter of 6 inches. Using deep fine polypropylene or glass fiber membrane as filter material, the liquid is filtered from the inside out. Particles are trapped inside the filter element. The large flow design allows high flow rate capabilities within a single filter element, significantly reducing the number of filter cartridges and filter housings, greatly reducing equipment investment and labor costs.

Model	XP-G1-6100V
Length	60 Inches
Precision	10µm
Media	Pleated Glass w/ Acrylic Backing
Seal	Viton
Operating Temperature	240F
Body Media	Tin-Plated Steel
End Caps	Nylon
Flow direction	In to Outside

Features



Features of Liquid Filter Cartridge XP-G1-6100V

The multi-layer W-type pleat media design increases the pollution capacity,and reduces flow restrictions and long-term costs.

The interior is pleated glass fiber and the exterior is a steel skeleton.

The herringbone seal ensures a complete seal to prevent filter element leakage.

The end cap handle can easily extract the filter element from the support basket.

• Chemicals & Solvents
• Reverse Osmosis Cartridge Filtration Pretreatment
• Petrochemicals
• Microelectronics
