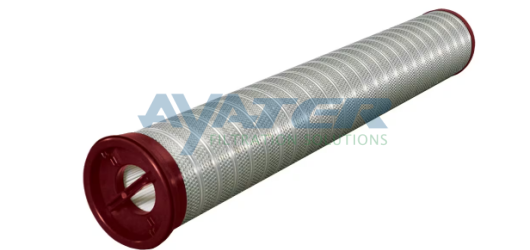

Liquid Filter Cartridge XP-G2-6200V

The Liquid Filter Cartridge XP-G2-6200V adopts a multi-layer pleated media which increase the filtration area and improve the dust holding capacity. High-strength pleats are not easy to deform and can maximize the use of filter media.The side open end and the flow from inside to outside ensure that impurities are captured in the filter element.The large flow design reduces the investment costs.

Model	XP-G2-6200V
Length	60 Inches
Precision	20µm
Media	Pleated Glass w/ Acrylic Backing
Seal	Viton
Operating Temperature	240F
Outer Support	Plated Stee
Body Media	Powdercoated Corrosion Resistant Steel
End Caps	Nylon
Flow direction	In to Outside
PH Range	3-9

Features



Features of Liquid Filter Cartridge XP-G2-6200V

Sealed interface design reduces the risk of bypass flow, eliminates leakage, and improves safety.

V-shaped seal ensures complete sealing.

Single-tube high flow capacity.

No tools are required to install or remove the cartridge, saving labor costs.

• Paint industry
• Water treatment
• Medical industry
• RO security filtration
