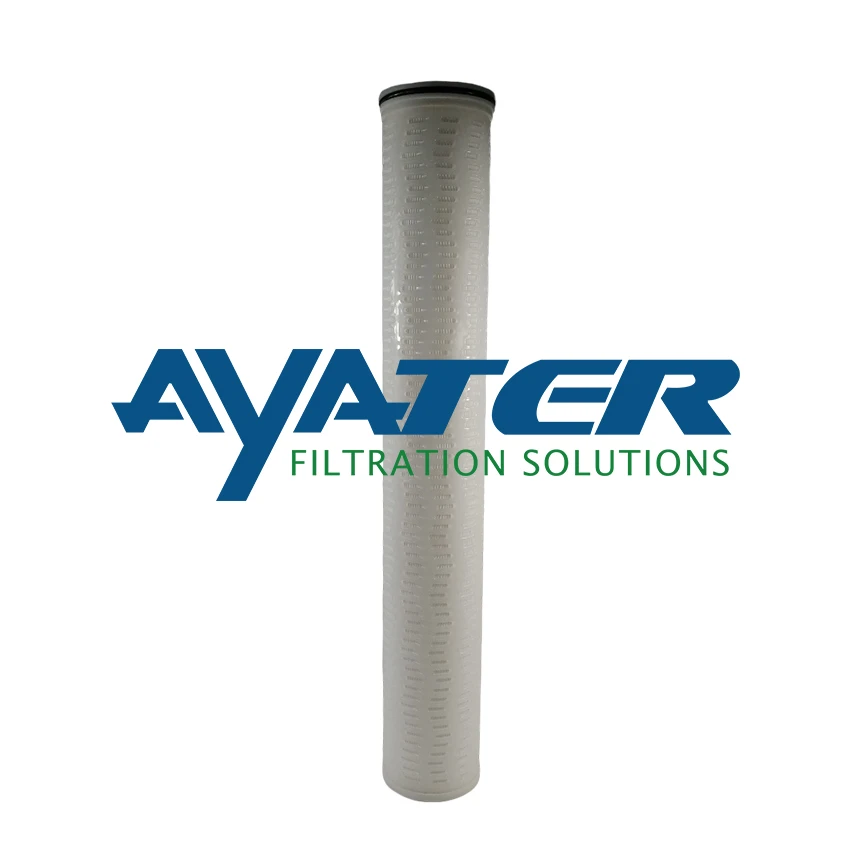

Liquid Filter Cartridge XP-L-6400V

Liquid Filter Cartridge XP-L-6400V is a large flow filter element with no center rod inside and a single opening design industrial filter element. The deep pleating process and large diameter makes the filter area 8 times that of ordinary bag filter elements, which reduces maintenance costs and replacement frequency. The main material is PP,which has a wide range of chemical tolerance and can be used in various filtration occasions.

Model	XP-L-6400V
Length	60 In
Precision	40µm
Media	Pleated PP
Seal	Viton
Outer Support	PP
Flow direction	Inside to Outside
PH Range	2-14
MAX. Temp	180°F
Max. Pressure Differential	3.4 bar

Features



Features of Liquid Filter Cartridge XP-L-6400V

V-shaped seal ensures complete sealing

One-piece end cap with handle for easy installation

6-inch large diameter, single-core high-flow filter element

All support layers and hardware are made of PP

The filter element is 100% hot-melt welded and can be used at higher temperatures

• Seawater pretreatment

• Power plant condensate
• Biopharmaceutical solvent

More Models



XP-L-41000E	XP-L-6700V	XP-L-8100E
XP-L-4050V	XP-L-6050B	XP-L-8050E
XP-L-2050V	XP-L-2100E	XP-L-2100V
More details,please contact us.
