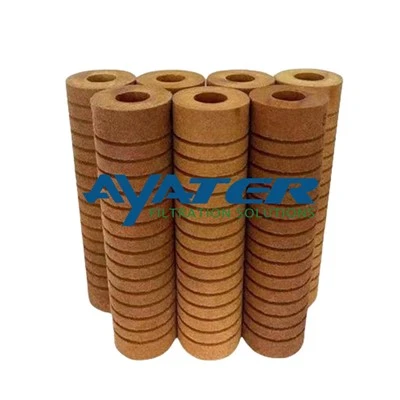

Resin Bonded Cartridge Filter

Resin bonded cartridge filters are designed with a progressively tightened rigid structure to prevent collapse or deformation under extreme viscosities and temperatures.

Send Inquiry→

Products Description

Our resin bonded cartridge filters are specifically designed for viscous liquid filtration applications. Constructed from polyester and acrylic fibers bonded with phenolic resin, they feature a progressively tightened rigid structure. This design prevents collapse or deformation when subjected to extreme viscosities and temperatures.

Technical parameters

Parameter	Specification
Filtration Media	Rigid, self-supporting matrix of acrylic fibers bonded with phenolic resin
Filtration Grade	1, 3, 5, 10, 25, 50, 75, 100μm
Construction Type	One-piece, coreless depth media
Media Color	Deep brown
Inner Diameter (ID)	28 mm (±1 mm)
Outer Diameter (OD)	65 mm (±1 mm)
Standard Lengths	10", 20", 30", 40" (254 mm, 508 mm, 762 mm, 1016 mm)
Flow Rate	5 GPM per 10" length
Max Operating Temperature	250°F (121°C)
Max Differential Pressure	150 PSID (10.3 bar) at 70°F (21°C)
Chemical Compatibility	Compatible with weak acids and bases (pH 5–9). Not suitable for strong oxidizers or FDA applications.

Features and Benefits

Features	Benefits
✅ Rigid, resin-saturated construction	Prevents media migration and maintains structural integrity under high differential pressure, ensuring consistent performance.
✅ Deep-bed, graded density filtration	Captures contaminants throughout the entire media, not just on the surface, for higher dirt holding capacity and longer service life.
✅ Broad material and resin compatibility	Offers reliable performance across a wide range of aggressive chemicals, oils, solvents, and compressed gases.
✅ Wide nominal ratings from 1 to 100 micron	Offers flexibility for a broad range of applications and contaminant types, from coarse to fine filtration.
✅ ISO 9001 certified manufacturing	Assures consistent product quality, reliability, and performance backed by an international quality standard.

Performance

Pressure drop rate for a 10 inch resin bonded cartridge filter.

10-inch-resin-bonded-cartridge-filter

Applications

Chemical Manufacturing: Processing of various chemicals, resins, emulsions, organic solvents, plasticizers, and process water.
Coatings & Paints: Ideal for use in paint production, printing inks, chemical coatings, lacquers, varnishes, and epoxy treatments.
Adhesives & Sealants: Effective filtration during the manufacture of adhesives, sealants, and bonded materials.
Petroleum & Lubricants: Suitable for filtering fuel oils, crude oils, lubricating oils, greases, hydraulic fluids, and other petroleum-derived products.
Industrial Fluids: Reliable performance in coolants, antifreeze solutions, metalworking fluids, and synthetic lubricants.

workshop
