Resin bonded filter cartridges are specifically designed for filtering high-viscosity liquids, offering outstanding chemical compatibility. They effectively address clogging issues and enhance filtration efficiency.

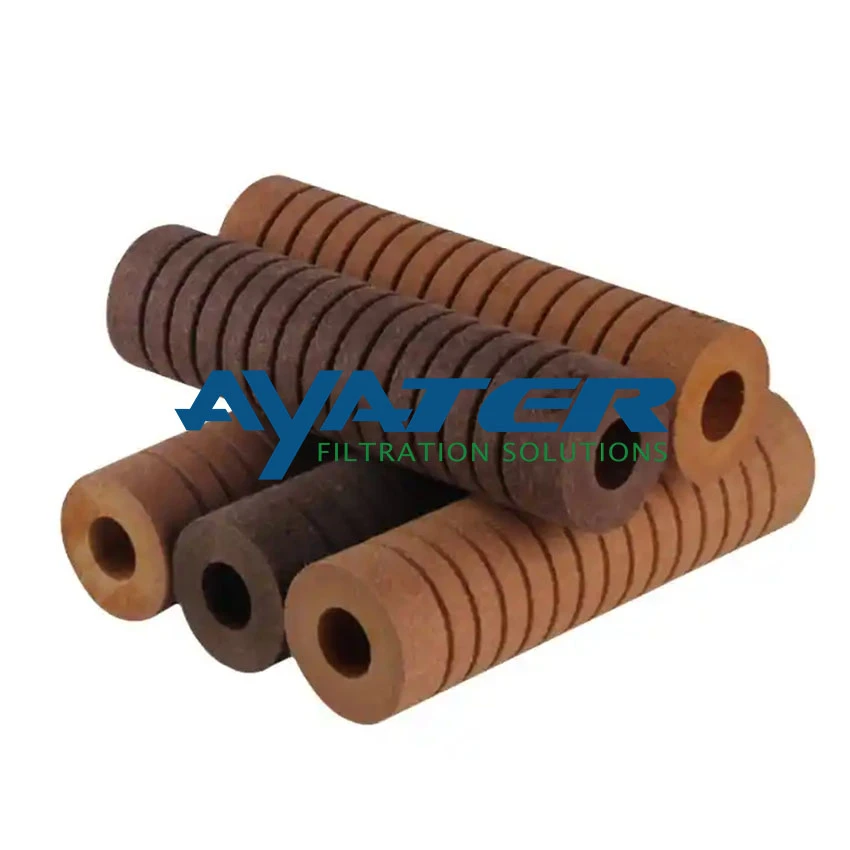

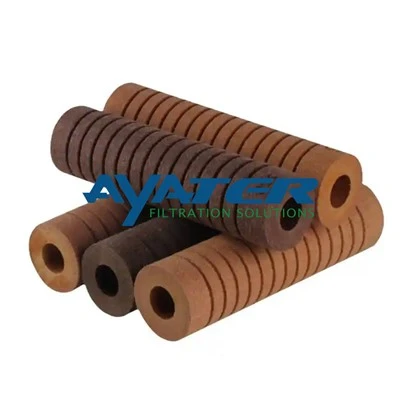

Resin bonded filter cartridges are rigid depth filters featuring a gradient pore structure. Manufactured from acrylic fibers and phenolic resin materials through a high-temperature sintering process, this combination provides broad chemical compatibility. They are an ideal choice for treating high-viscosity liquids.
| Parameter | |
| Construction | Phenolic resin-bonded acrylic fiber |
| Core Material | Polyester (Extended core optional) |
| Seals / O-rings | Silicone, EPDM, Nitrile, Fluorocarbon, PTFE-encapsulated Fluorocarbon (O-rings only) |
| Bonding Method | Polyamide hot-melt adhesive |
| Filtration Ratings | 1 - 100µm |
| Dimensions (Nominal) | |
| Outer Diameter (OD) | 2.45–2.55 in |
| Inner Diameter (ID) | 15/16 in |
| Lengths | 9.75, 10, 19.5, 20, 30, 40 in (Customization available) |
| Operating Conditions | |
| Max Operating Temperature | 252°F (122°C) |
| Max Differential Pressure | 70 psid (4.8 bar) |
| Recommended ΔP Change | 35 psid (2.4 bar) |
| Max Operating Pressure | 362 psi (25 bar) |
| pH Range | 4 – 9 |
| Flow Direction | Outside to Inside |
|
Features |
Benefits |
| ⚡ Rigid, all-synthetic construction with no metal or plastic core |
✅ Ensures extensive chemical compatibility and easy, safe handling without the risk of core corrosion or failure. |

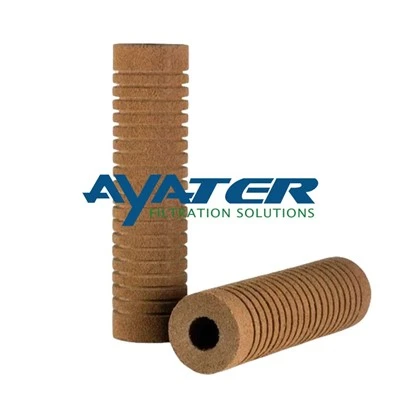

| ⚡ Graded porosity media with a grooved outer surface |
✅ Provides superior particle removal efficiency, high dirt holding capacity, and consistent filtration with low pressure drop for extended service life. |
| ⚡ Spiral-wound outer layer and precision inner layer |
✅ The outer layer captures large particles and agglomerates, while the inner layer ensures accurate rated particle removal, preventing premature clogging. |
| ⚡ Long acrylic fibers bonded with phenolic resin |
✅ Delivers enhanced structural integrity, preventing fiber shedding and migration even under high differential pressures up to 150 psid. |
| ⚡ One-piece, seamless design |
✅ Eliminates bypass risk and unloading under pressure surges, ensures a secure seal, and allows for easy installation and removal in competitive housings. |
The following figure shows the pressure drop rate of a 10 inch resin-bonded filter cartridge.
 |
 |
 |
 |
Q: Is this cartridge chemically compatible with aggressive solvents?
A: Yes, depending on media selection. We offer synthetic media options for highly aggressive chemical environments.
Q: Can you customize length and efficiency ratings?
A: Absolutely. We provide custom sizes and efficiencies to meet specific system requirements.
Q: What makes your resin bonded cartridge more durable than standard depth filters?
A: Our proprietary resin integration process creates a unified matrix resistant to bypass and mechanical failure, even under high pressure.
