Ayater filter Construction Materials • Media: Microglass filter media sandwiched bweteen two protective layers of nylon media then supported with an inner and outer layer of epoxy steel screen. • Center Tubes: Tin-plated steel • End Caps: Coated steel • O-ring Seals: Buna-N standard, others are...
Ayater filter Construction Materials
• Media: Microglass filter media sandwiched bweteen two protective layers of nylon media then supported with an inner and outer layer of epoxy steel screen.
• Center Tubes: Tin-plated steel
• End Caps: Coated steel
• O-ring Seals: Buna-N standard, others are available
• Collapse Pressure: 100 psid (6.9 bar)
• Maximum Service Temperature: 250º F
Ayater filter replacement Features
♦ Synthetic media
♦ Support Screen
♦ Rigid-pleat structure
♦ External hold-down spring
♦ O-ring seal
♦ Corrosion-resistant
♦ Metal end-caps and center tube
♦ High collapse strength

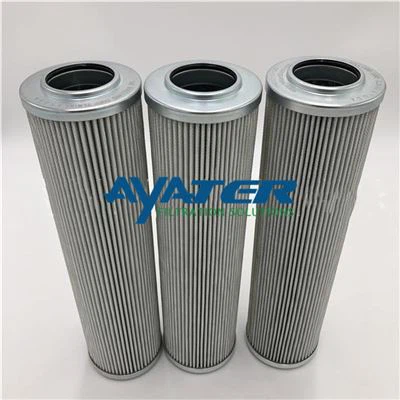

Hilco filter cartridge PH310-03-C
 |  |
Hilco PH310-03-C Specification
OEM Part Number | PH310-03-C |
Efficiency | Beta 25[c] >= 1000 (ISO 16889 & DFE) |
Collapse Rating | 100 |
Max Temp (F) | 225 |
Adhesive | Epoxy |
By-Pass | None |
End Cap | Corrosion Resistant CS/AL |
Flow Direction | Out/In |
Media Type | Microglass supported both sides |
Recommended Change Out (psid) | 25 |
O.D. | 2.5 |
Length | 9.62 |
Seal Material & Type | Buna Flat |
Quantity per Carton | 1 |
Weight per Filter (lbs) | 3.0000 |
Product Testing
