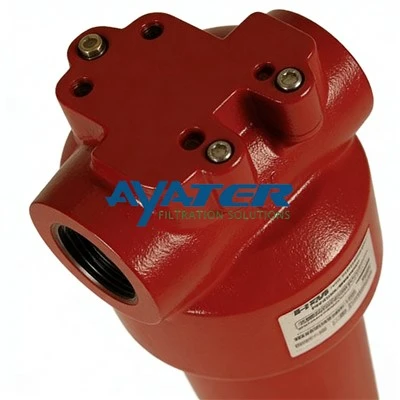

Ayater HFM Filter Assembly: Premium 10µm High-Pressure Inline Filtration

In the highly demanding environments of contemporary earthmoving, mining, and agricultural equipment, maintaining absolute fluid cleanliness is a non-negotiable requirement. The Ayater HFM filter functions as a highly efficient SAE-16 threaded high-pressure inline filter, specifically engineered to safeguard delicate downstream components from catastrophic failure. By capturing abrasive particulate matter-such as silica ingress and microscopic metal shavings-before it can reach sensitive servo valves and hydraulic cylinders, this assembly significantly prolongs the operational lifespan of heavy-duty machinery. As modern mobile equipment increasingly relies on extreme power density and high-efficiency outputs, our 140 LPM mobile machinery filtration solution provides the necessary flow capacity without inducing unacceptable pressure drops. This ensures that hydraulic operations remain smooth, highly responsive, and uninterrupted even under maximum hydrostatic load conditions.

Mechanical durability forms the absolute foundation of this purification unit. A primary structural advantage of the Ayater design is the non-welded hydraulic filter housing. Traditional welded pipe assemblies frequently suffer from microscopic stress concentrations that ultimately lead to fatigue failure during continuous high-pressure cyclical loading. By utilizing a solid, monolithic ductile iron head seamlessly paired with a precision-machined heavy-duty carbon steel screw-in bowl, this 10µm fiberglass high-pressure filter effortlessly withstands maximum continuous operating pressures of up to 400 bar (5800 psi). The steel bowl is intentionally designed to mount directly below the filter head. This specific vertical orientation demands minimal physical clearance for maintenance personnel when swapping out saturated elements, simultaneously guaranteeing that trapped contaminants cannot accidentally backwash downstream into the clean hydraulic circuit during routine field servicing.

At the very core of this high-performance assembly is a premium high-capacity microglass media, formulated expressly for maximum dirt retention and superior absolute Beta ratios. The multi-layered micro-pleat architecture ensures optimal particle capture efficiency while maintaining a remarkably low differential pressure (Delta P) across the entire service life of the element. Because mobile applications inevitably experience fluctuating thermal conditions and sudden operational surges, the element is structurally reinforced with metallic mesh to boast a 20 bar (290 psi) collapse pressure rating. This structural resilience guarantees that even under severe cold-start flow surges, the filter media remains perfectly intact, providing vital tribological wear prevention. Furthermore, standardized NBR (Nitrile) seals provide rock-solid, zero-leakage performance for mineral-based hydraulic oils and standard lubrication fluids.

In high-pressure mobile machinery, the overwhelming primary cause of catastrophic component breakdown is particulate contamination. By integrating this Ayater HFM filter into your system architecture, fleet operators drastically reduce the dangerous circulation of system-destroying debris. The rigorous absolute efficiency of our unit ensures that fluid power is transmitted flawlessly, eliminating actuator stiction and pump cavitation. The robust design ultimately lowers total cost of ownership (TCO) by radically extending functional oil life and minimizing unexpected mechanical breakdowns in the field.
