The dust collector filter bags cover a precision range of 0.1 - 10μm and can intercept over 99% of fine dust particles. We offer a wide range of materials to handle various working conditions.

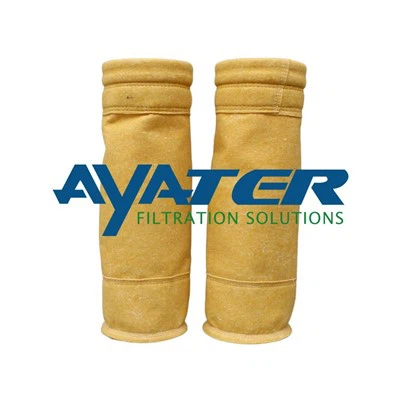

The P84 filter bag is made of P84 fiber material and has excellent high-temperature resistance. It can operate stably and continuously in an environment of 140°C and can withstand a high temperature of 260°C instantaneously. At the same time, it has outstanding chemical corrosion resistance and can operate stably in most complex chemical environments. The O.D ranges from 100-250mm, and customized sizes are available. There are two processing methods, sewing and welding, which can be adapted to a variety of equipment. It meets the diverse needs of different enterprises and provides a reliable dust control solution for industrial production.
| Product | P84 Filter Bag |
| Materials |
P84
|
| Thickness | 2.0 mm |
| Unit mass | 550g/㎡ |
| O.D | 100-250mm |
| Process Method | Sewing / welded |
| Air permeability | 140-180m³/㎡/min |
| Working temperature | Continuous: 140℃ Instantaneous: 260℃ |
| Acid resistance | Excellent |
| Alkalinity resistance | General |
| Oxidation resistance | Good |
| Filtration speed | 1.2-1.5m / min |
| Post-processing | Setting, singeing, napping |
01. Turning stitches
Sufficient stitching to avoid breakage.
02. Different Thicknesses
Filter materials of various specifications.
03. Diverse Material Selections
Different properties can be selected.
04. Mechanized cutting
Efficiency increases and costs decrease.
Metal smelting and foundries: Filter metal oxides, dust, and fumes generated during the melting and casting processes.
Cement production: P84 filter bags are used in the dust removal system to capture cement dust and other particulate matters generated during the production process.
Power generation: Applied in boiler systems and flue gas purification devices.
Common Problem
What's the filtration accuracy of the filter bags?
P84 filter bags achieve over 99% filtration efficiency for 0.1 - 1 micron fine dust particles.
Can the outer diameter of P84 filter bags be customized?
Sure. Share your size needs, and we'll offer suitable products.
How do we determine the dust - cleaning cycle of P84 filter bags?
Typically 3 - 7 days. It depends on the filtration system's operation.
What's the approximate service life of P84 filter bags?
Generally 2 - 4 years.
